Discover 200EX - Arc / Stick Welder (MMAW / SMAW)

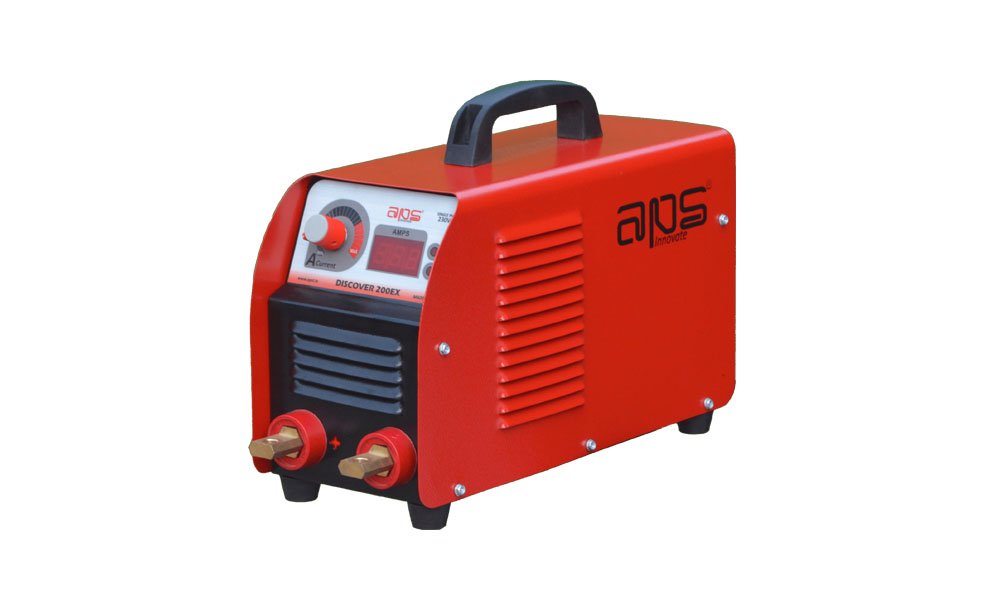

APS Welding presents the Portable, Powerful and Productive Stick Electrode Discover 200EX ARC Welding Machine. This small wonder weighs only 7.2 Kg and yet does perform the toughest jobs with ease.

Quick Specs:

TECHNOLOGY:

Discrete IGBT based 40KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

Best for site conditions, thanks to wide input voltage range from 150VAC to 300VAC.
Easy portability, only 7.2 Kg weight.
Rugged capability, complete Metal Body.

QUICK SPECS

Input Voltage: 230VAC, 1 Phase, 50/60Hz.
Output Current @ 60%: 200Amp
Output Current @ 100%: 130Amp

PROCESS:

SMAW – Stick Welder, DC Constant Current Power Source.

Technical Specifications:

Input Specifications:

Input Voltage: 230 VAC, 1Phase, 50/60Hz (150VAC to 300VAC)
Primary switching device: IGBT Discrete
Input KVA @ 200A: 6.2KVA
Input Cable: 3 core 2.5 sqmm with Plug, 1.5 meters

Output Specifications:

Output Current Range: 10 Amp to 200 Amps
Output Current @ 60% Duty Cycle: 200 Amps
Output Current @ 100% Duty Cycle: 130 Amps
Max Open Circuit Voltage: 85 VDC

Other Specifications:

Class of Ingress Protection: IP21
Class of Insulation: Class H
Type of cooling: Forced Air

Mechanical Specifications:

Dimensions: L:350mm x W:145mm x H:261mm
Weight: 7.2 Kgs
Base: Rubber Foot
Lifting Support: Handle

Other Details:

SUITABLE FOR:

DIY Enthusiasts / Hobbyist
Farm & Agricultural Tools Repair
Maintenance & Repair Works
Customizing & Restoration Welding

WELDABLE MATERIALS:

Steel, Mild Steel, Carbon Steel
Stainless Steel

ELECTRODE TYPE & DIAMETER:

6013, 7018
1.6 mm, 2.0 mm, 2.5 mm, 3.15 mm

JOB THICKNESS:

1.0 mm TO 6.0 mm

STANDARD ACCESSORIES:

Electrode Holder: EH20
Earthing Clamp: EC20
Welding Cable 16 sqm

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
