Home > ACCESSORIES> Plasma Cutting ACCESSORIES> Torch ABW161

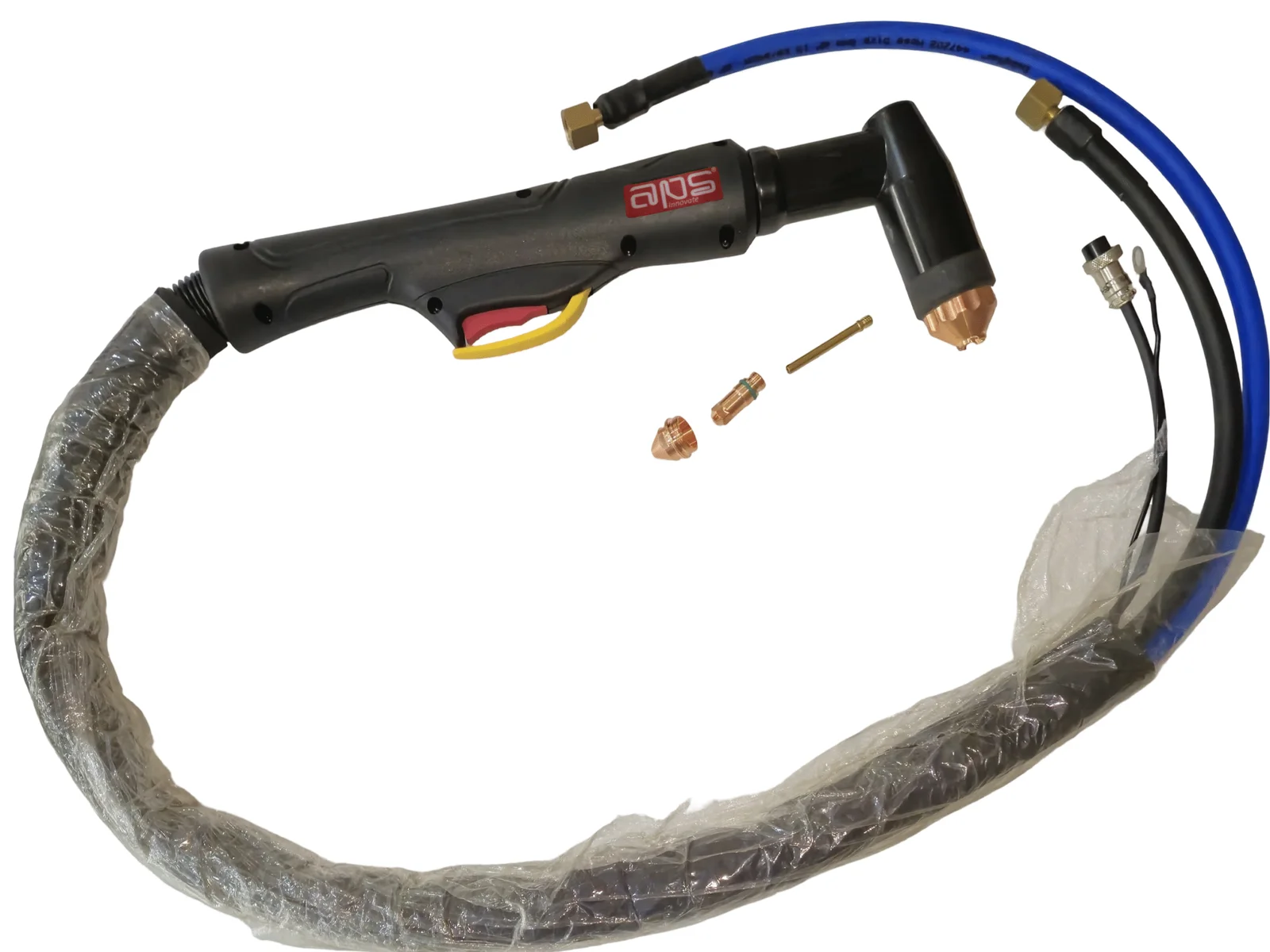

The Plasma Torch AYK300 is a robust and high-efficiency tool designed for industrial plasma cutting applications. It is engineered to provide precise cuts in various materials, offering users a versatile and reliable solution for demanding environments. Here’s a deeper look at the features, applications, and advantages of this plasma torch:
Cutting Current: Up to 300A for heavy-duty cutting.
Cooling System: Dual water-cooled for longer life and better performance.
Max Cutting Thickness: Up to 35mm.
Duty Cycle: 60% at 300A for continuous operation.
Gas Type: Uses compressed air.
Ignition: High-frequency for reliable arc starting.
Consumables: Compatible with standard plasma consumables.
Connector: EURO-style for compatibility with various machines.
Versatile: Cuts steel, stainless steel, aluminum, and more.
| No. | Name | Part No. | Barcode |
|---|---|---|---|
| 1 | AYK300-CAP | 3840581 | 38405817 |
| 2 | AYK300-ELECTRODE | 3840580 | 38405800 |
| 3 | AYK300-GASDISTRIBUTOR | 3840583 | 38405831 |
| 4 | AYK300-GASRING | 3840584 | 38405848 |
| 5 | AYK300-HOLDER | 3840587 | 38405879 |
| 6 | AYK300-NOZZLE-1.8MM | 3840585 | 38405855 |
| 7 | AYK300-NOZZLE-2.0MM | 3840586 | 38405862 |
| 8 | AYK300-RING | 3840582 | 38405824 |
| 9 | AYK300-SHIELD | 3840588 | 38405886 |
| 10 | AYK300-SPRING | 3840589 | 38405893 |
| No. | Name | Part No. | Barcode |
|---|---|---|---|
| 1 | AYK300-AUTOTORCH-10MTR | 3840683 | 38406836 |
| 2 | AYK300-AUTOTORCH-15MTR | 3840684 | 38406843 |
| 3 | AYK300-AUTOTORCH-5MTR | 3840682 | 38406829 |
| 4 | AYK300-HANDTORCH-10MTR | 3840680 | 38406805 |
| 5 | AYK300-HANDTORCH-15MTR | 3840681 | 38406812 |
| 6 | AYK300-HANDTORCH-5MTR | 3840679 | 38406799 |
| 7 | AYK300CABLEASSEMBLY10MTR | 3840655 | 38406553 |
| 8 | AYK300CABLEASSEMBLY15MTR | 3840656 | 38406560 |
| 9 | AYK300CABLEASSEMBLY5MTR | 3840654 | 38406546 |
| 10 | AYK300GUIDEWHEEL | 3840603 | 38406034 |
| 11 | AYK300HEADAUTOTORCH | 3840642 | 38406423 |
| 12 | AYK300HEADHANDTORCH | 3840641 | 38406416 |
| 13 | POWERCABLENUTNIPPLE-AYK300 | 3840604 | 38406041 |
Bulk Orders: Dealer pricing available on request
| Specification | Details |
|---|---|
| Cutting Current | Up to 300A |
| Duty Cycle | 60% at 300A |
| Air Pressure | 4.5 to 6.0 bar |
| Cooling System | Dual water-cooled design |
| Max Cutting Thickness | Up to 35mm |
| Gas Type | Compressed air |
| Ignition Type | High-frequency ignition |
| Consumables Compatibility | Standard plasma consumables |
| Connector Type | EURO-style connector |
| Cable Length | 5 meters |
| Weight | 2.5-3.5 kg |
| Material Compatibility | Steel, stainless steel, aluminum, copper, brass |
| Operating Temp. Range | -10°C to 50°C |
The Plasma Torch AYK300 is widely used in industries where precision cutting of metals is required. Common applications include:
Metal Fabrication: Perfect for cutting a variety of metal sheets, plates, and other components, especially in fabrication shops that need precision and speed.
Automotive Industry: Ideal for cutting automotive components, body parts, and frames with accuracy.
Construction: Used for cutting steel beams, structural elements, and other materials in construction projects.
Shipbuilding: Plays a vital role in cutting and shaping materials for ships, particularly in the fabrication of hulls and other large components.
Efficiency: With its powerful performance and dual cooling system, the Plasma Torch AYK300 allows for quicker and more efficient cutting, improving productivity in industrial environments.
Precision: The torch ensures clean, sharp cuts with minimal dross, which enhances the overall quality of the final product.
Cost-Effective: Due to its use of standard plasma consumables and low maintenance requirements, the Plasma Torch AYK300 offers a cost-effective cutting solution for businesses.
Versatility: Capable of cutting a wide range of materials, including mild steel, stainless steel, and aluminum, the Plasma Torch AYK300 can handle diverse cutting needs across industries.
Safety: The high-frequency ignition and advanced cooling system reduce the risk of overheating and ensure safe operation.
