CNC Plasma & Oxy-Fuel Pipe Profile Cutting Automation (PPCM)
APS Welding's Pipe Profile Cutting Machine (PPCM) is a purpose-built CNC automation system for precise plasma cutting of pipes across all industrial profiles. Handles 4–24 inch diameter pipes up to 30mm thick and 12 metres long — with auto-calibration, sensor-based height control, and intelligent cut sequencing. Engineered and manufactured in India.
Pipe Diameter
Max Thickness
Pipe Length
Cutting Angle
Plasma Source
Auto Control
cutting and shaping pipes
The process of cutting and shaping pipes to required designs using special CNC-controlled tools and techniques is called Pipe Profile Cutting. This process is crucial in industries including construction, manufacturing, oil and gas, shipbuilding, and aerospace — anywhere precision-fit pipe joints are required.
APS Welding’s PPCM automation brings CNC plasma cutting to pipe fabrication — eliminating manual marking, reducing human error, and delivering repeatable precision cuts across saddle joints, mitre cuts, offset joints, and complex compound profiles.
| Parameter | Specification | Notes |
|---|---|---|
| Pipe Diameter Range | 4 to 24 Inch | Suitable for a wide range of industrial pipe sizes. |
| Wall Thickness | Up to 30 mm | Supports heavy-wall pipe cutting applications. |
| Pipe Length | Up to 12 m | Compatible with long pipe sections for continuous processing. |
| Chuck Rotation Speed | 0.1 to 1.6 RPM | Variable speed for precise cutting operations. |
| Cutting Angle Range | −90° to +90° | Enables straight, bevel, and complex profile cutting. |
| Plasma Source | Rhino Cut 200 (200A) | High-performance plasma power source for accurate cutting. |
| Chuck Size | 24 Inch | Provides secure clamping and stable pipe rotation. |
| Rail Track Length | 13 m | Supports smooth machine travel for long pipe lengths. |
| * Specifications are subject to change without notice. Contact APS Welding Solutions for the latest technical datasheet and available configurations. | ||
| Parameter | Details | Notes |
|---|---|---|
| Working Principle | High-powered laser beam melts, focuses and vaporizes pipe material with extremely high precision and repeatability. | Ideal for complex profiles, intricate cuts and high-quality edge finishes. |
| Pros | Highest precision, fast cutting speed, no material contamination. | Produces clean burr-free cuts with minimal heat-affected zone and excellent repeatability. |
| Cons | Very high equipment cost and energy consumption. | Requires skilled operation, regular maintenance and is less economical for thick materials. |
| * Performance depends on material type, thickness, laser power and machine configuration. | ||
| Parameter | Details |
|---|---|
| Working Principle | Plasma arc melts the metal, while a high-velocity gas stream blows away the molten material. Ideal for thick pipes above 10 mm wall thickness. |
| Pros |
|
| Cons |
|
| * Plasma cutting is widely used for heavy-duty industrial applications where speed and thick material cutting capability are priorities. | |
| Parameter | Details | Notes |
|---|---|---|
| Cutting Method | High-Pressure Water Jet | Uses ultra-high-pressure water to cut pipes with precision. |
| Heat Generation | Cold Cutting Process | No heat-affected zone (HAZ) or thermal distortion. |
| Material Compatibility | Sensitive & Heat-Critical Materials | Ideal for stainless steel, composites, alloys, and coated materials. |
| Cut Quality | Clean, Burr-Free Edges | Minimizes secondary finishing operations. |
| Advantages | No Thermal Distortion | Maintains original material properties and dimensional accuracy. |
| * High-pressure water jet cutting is recommended for applications where heat-free, precise, and clean pipe cutting is essential. | ||
| Parameter | Specification | Notes |
|---|---|---|
| Working Principle | Mechanical CNC-Controlled Cutting Tools | Removes pipe material to create precise profiles and contours. |
| Cutting Capability | Variable-Depth Cutting | Suitable for complex weld preparations and custom geometries. |
| Precision | High Accuracy | Produces consistent, repeatable profiles with tight tolerances. |
| Surface Finish | Clean Machined Edge | Minimizes burrs and reduces secondary finishing operations. |
| Advantages | High Precision, Clean Cuts, Variable Depth Capability | Ideal for demanding industrial applications requiring accurate fit-up. |
| Limitations | High Initial & Maintenance Cost | Requires skilled tooling selection and periodic maintenance. |
| Typical Applications | Pipe End Preparation, Beveling, Profiling | Used in fabrication, pressure vessel, and pipeline manufacturing. |
| * Performance depends on machine configuration, cutting tool selection, and workpiece material. Specifications may vary based on application requirements. | ||
The automation auto-calibrates itself to its initial 0° reference position and top of Y-axis travel before each cutting cycle — ensuring every cut starts from a verified datum point.
The torch senses the pipe surface via proximity sensor and automatically maintains the correct cut height and pierce height as per input parameters for accurate, consistent cuts.
The cutting arm automatically travels to the next cut position based on entered job length data — no manual repositioning between sequential cuts along a pipe.
Proximity sensors control Y-axis torch movement to prevent torch-pipe collisions and mechanical malfunctions — protecting both the torch assembly and the workpiece.
Run-In Distance (up to 25mm) is the travel after the pierce hole before the actual profile cut begins — configurable by the operator for optimum entry into each profile shape.
Nema 34 Stepper Motor with dedicated Stepper Drive and 2HP induction motor/gearbox combination ensures precise, repeatable chuck rotation for consistent profile cutting angles.
| Component | Model / Type | Specification | Purpose |
|---|---|---|---|
| Plasma Power Source | Rhino Cut 200 | 200A plasma cutting power source with cooling unit and 50L coolant tank for continuous-duty operation. | Provides stable, high-performance plasma cutting for heavy industrial applications. |

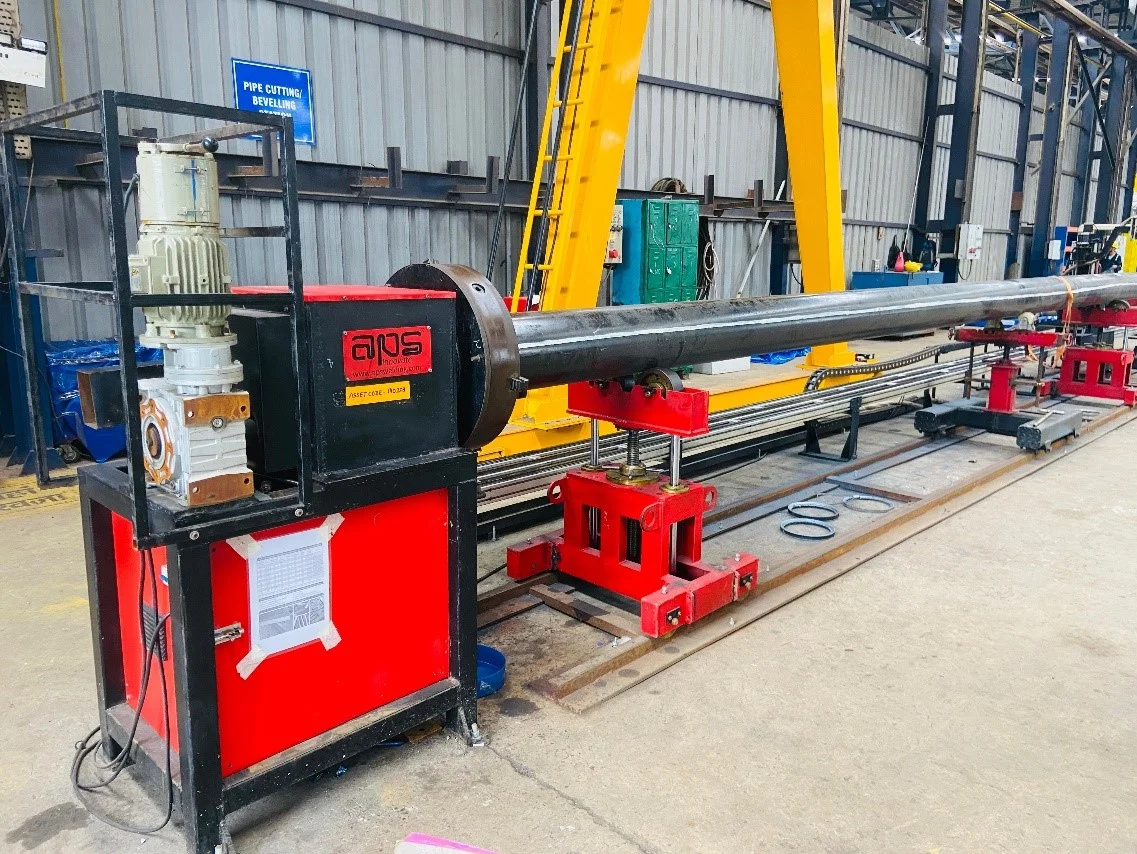

| 24-Inch Chuck | Heavy-Duty Manual Chuck | Accommodates pipe diameters from 4 to 24 inches with secure clamping and stable rotation. | Ensures accurate pipe positioning during cutting. |
| Drive Motor System | 2HP Induction Motor | RV90 gearbox (100:1 ratio) with 3:1 helical reducer for smooth, controlled chuck rotation. | Delivers consistent rotational speed and torque. |
| Stepper Motor & Drive | Nema 34 + BH-MSD-6A | BH86 SH 118-6004 AK stepper motor with BH-MSD-6A drive for precise Y-axis torch positioning. | Provides accurate CNC-controlled torch movement. |
| CNC Control Box | LCD-Based Controller | Dedicated control panel for cutting angle, job length, run-in distance, and rotation speed settings. | Offers simple operation and precise parameter control. |
| Cable Track & Rail | 13 m Precision Rail System | 13-metre cable way with precision rail track for smooth, vibration-free torch carriage travel. | Supports stable cutting along the full pipe length. |
CNC-controlled cuts ensure accurate fittings and connections — no manual marking errors, no inconsistent bevels, no rework on critical joints.
Automated sequencing streamlines the production process — dramatically reducing cutting time, repositioning time, and total labour cost per joint.
Handles saddle joints, mitre cuts, offset connections, compound angles, and custom shapes — profiles that are impossible to cut consistently by hand.
Produces smooth, burr-free, clean-edged cuts that enhance overall product quality and reduce post-cut grinding and finishing time.
Precise CNC cutting minimises defective cuts, reduces pipe wastage from incorrect cuts, and improves first-pass fit-up rates for welding.
Automated operation keeps operators away from the cutting zone — reducing exposure to plasma arc, fumes, and the physical hazards of manual pipe cutting.
Pipe profile cutting automation is critical anywhere precision pipe joints are required at production volumes.
Structural frameworks, crane booms, machine tool structures, and heavy industrial pipe fabrication.
Piping systems, structural steel frameworks, and architectural pipe features for buildings and civil infrastructure.
Pipeline systems, fittings, connectors, manifolds, and junction pieces in upstream, midstream, and downstream oil and gas.
Machinery frames, equipment enclosures, and product components requiring precision pipe profiles and tube joints.
Aircraft and spacecraft structural pipe components requiring exact profile cuts with tight dimensional tolerances.
Complex pipe routing systems, structural pipes, and offshore platform piping requiring precision profile cuts.
Boiler piping, heat exchanger connections, turbine pipe systems, and process piping in thermal and nuclear power plants.
Process piping for chemical, fertiliser, pharmaceutical, and food processing plants with high-quality joint requirements.
Vibration in Y-axis travel caused by ball screw misalignment was resolved through precision alignment and damping techniques during assembly.
Control systems isolated from high-frequency electromagnetic interference generated by the plasma power source — critical for reliable CNC control during cutting.
Torch setup vibration at LM rail joints during travel addressed by precise alignment of linear motion rail sections and joint reinforcement.
Jerk in torch carriage movement caused by trapped dust between gear teeth resolved with sealed covers and a regular maintenance protocol.
Improper installation foundation leads to misalignment and malfunctions — APS provides complete installation and commissioning support.
Plasma cutting generates significant fumes — exhaust management systems and extraction guidance are part of every PPCM installation plan.

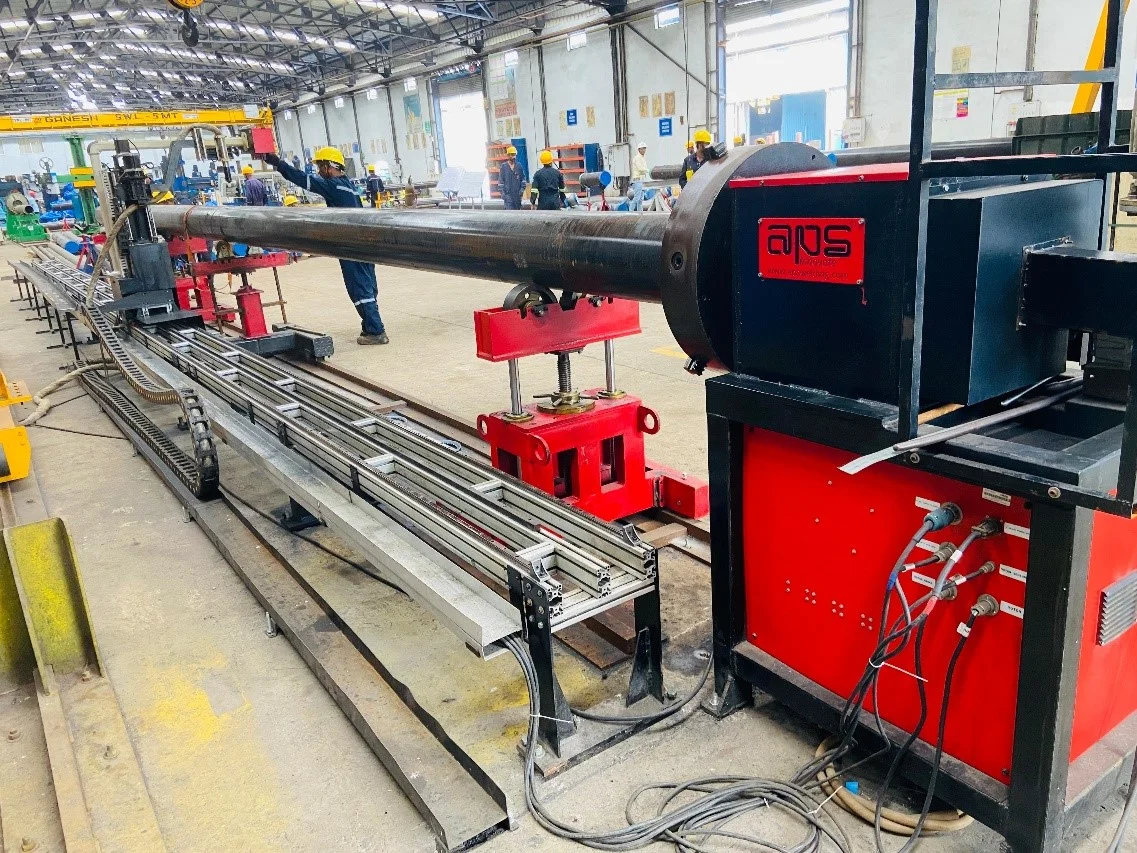

APS Welding has successfully installed and tested the PPCM automation. Below are the validated performance results from testing.
| Parameter | Value | Remarks |
|---|---|---|
| Pipe Outer Diameter | 12 Inch (305 mm) | Standard test pipe used for profile cutting demonstration. |
| Pipe Wall Thickness | 10 mm | Suitable for high-quality plasma profile cutting. |
| Material | Carbon Steel | Common industrial-grade pipe material. |
| Plasma Source | Rhino Cut 200 – 200A | Provides stable, high-speed cutting performance. |
| Profile Type | Saddle / Miter Cut | Demonstrates precision contour and branch connection cutting. |
| Parameter | Result | Specification | Remarks |
|---|---|---|---|
| Minimum Cutting Thickness | 5 mm | Validated cutting capability | Produces accurate cuts with excellent edge quality. |
| Maximum Cutting Thickness | 15 mm | Validated cutting capability | Suitable for medium-wall industrial pipes. |
| Cut Quality | Satisfactory | Consistent plasma cut finish | Delivers clean profiles with minimal edge imperfections. |
| Post-Cut Operations | Minimum | Reduced finishing requirements | Only light deburring or grinding is typically required. |
| Automation Status | Successfully Installed | Production-ready CNC system | Validated for reliable industrial operation. |
Pipe profile cutting is a vital process across industries — offering accuracy, efficiency, flexibility, and quality. By choosing the appropriate cutting method and automation, businesses can optimize their production processes and produce high-quality fabricated components.
Article written by Vruthik Patel — Design Engineer, APS Welding
Every PPCM system is designed and manufactured at our certified facility in Valsad, Gujarat under strict quality management.
100% designed and manufactured in-house at our own facility — giving us full control over material quality, assembly, and spare parts.
Every PPCM can be configured for specific pipe sizes, plasma sources, rail lengths, and cutting requirements of your production line.
APS provides complete installation, commissioning, and operator training for every PPCM system — including alignment and foundation guidance.
In-house manufacturing means international-standard CNC automation at genuinely competitive pricing — no middlemen, no import markup.
Dedicated service team with pan-India reach — spare parts, technical support, and service calls available across India.
