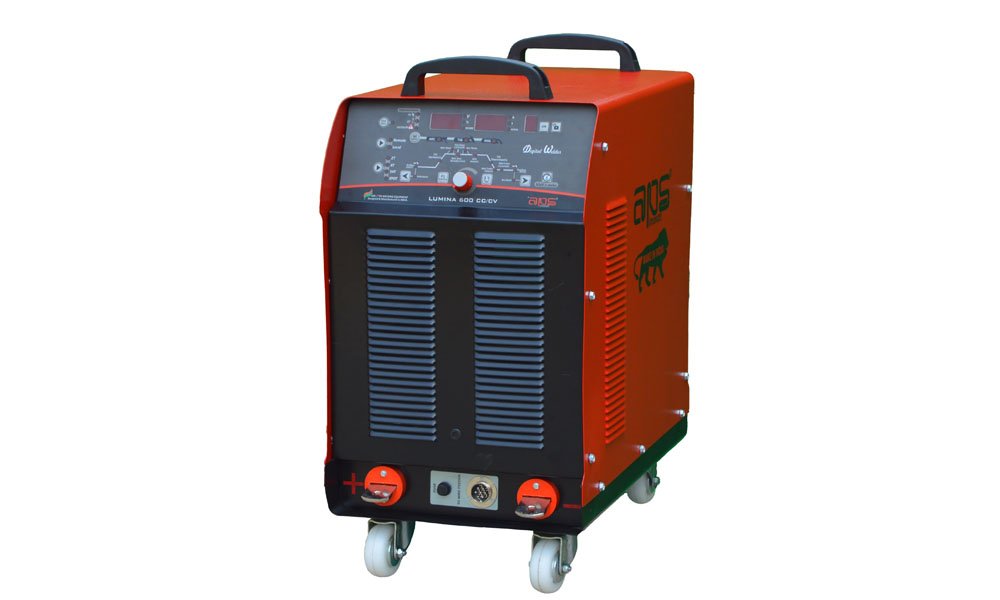

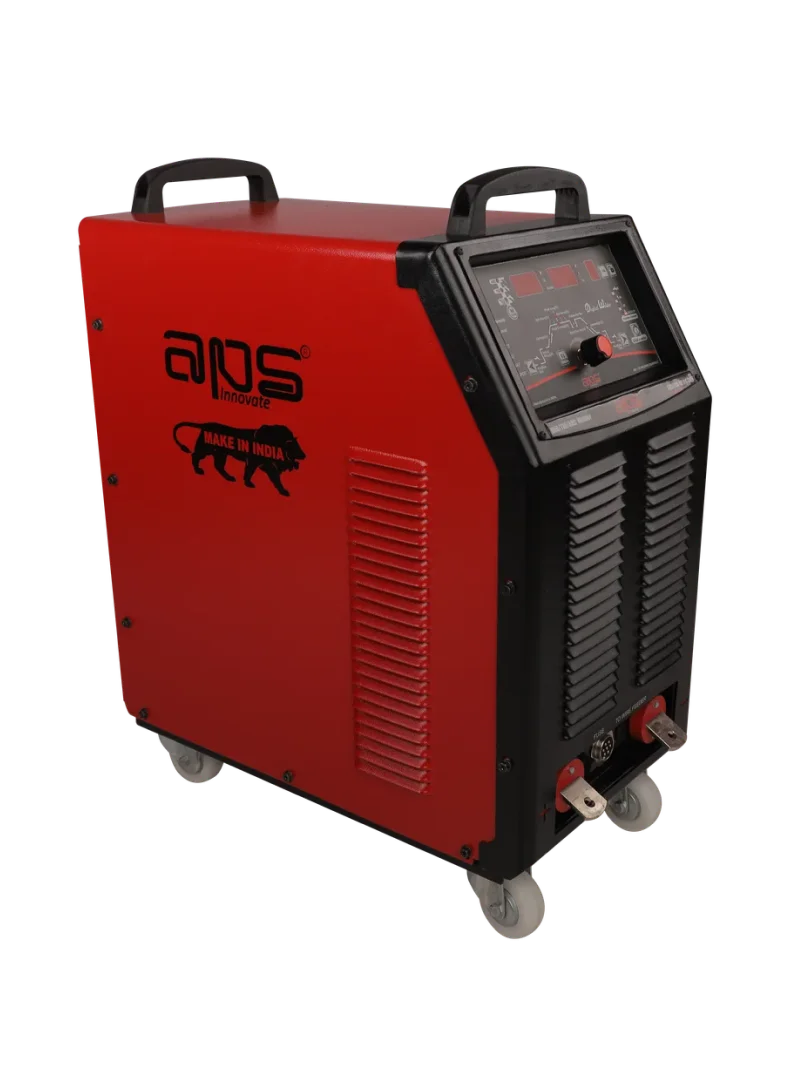

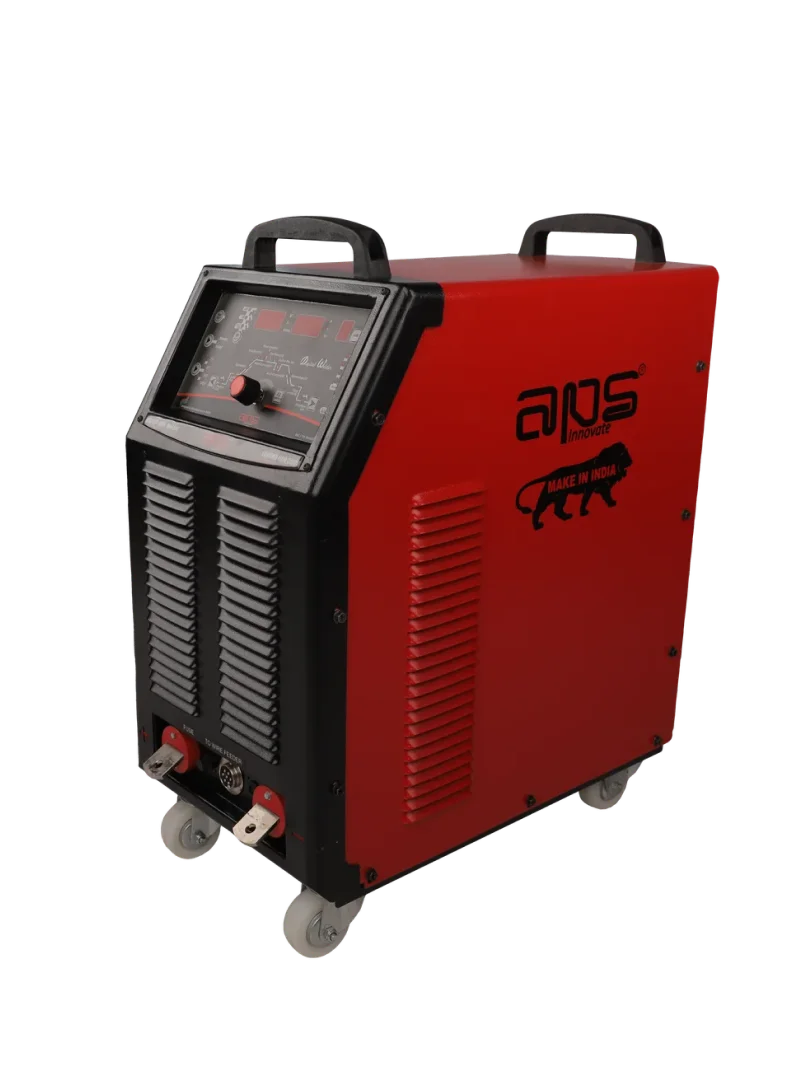

The Lumina 600CCCV from APS Welding is a cutting-edge, 600Amp CCCV (Constant Current / Constant Voltage) welding machine designed for demanding industrial applications. Engineered with advanced MODULE IGBT inverter technology, this robust and efficient unit supports both MIG/MAG (GMAW) and ARC/MMA (SMAW) welding processes, making it highly versatile for a range of materials including steel, stainless steel, aluminium, and specialty metals.
Weighing just 57 kg with a rugged metal body, the Lumina 600CCCV combines power and portability. It delivers 600A at 60% duty cycle and 465A at 100% duty cycle, ideal for continuous production environments. Features like electronic inductance control, crater voltage/current adjustment, and anti-stick technology ensure precise, high-quality welds.
This machine is perfect for sectors like shipbuilding, structural fabrication, heavy equipment manufacturing, and more. Whether welding beams, boilers, or cranes, the Lumina 600CCCV is built to perform.
Learn more about the MIG welding process to understand the technology behind one of Lumina 600CCCV’s core capabilities.
TECHNOLOGY:
MODULE IGBT-Based Inverter Technology
Utilizes 20kHz Full-Bridge Inverter Architecture for high efficiency, compact size, and reduced power consumption compared to conventional welding machines.
Constant Current / Constant Voltage (CCCV) Output Design
Ensures stable arc performance across different welding modes—consistent weld quality with minimal spatter.
Digital Control and Protections
Advanced electronic control for output stability, with built-in protections:
– Under/Over Voltage
– Phase Loss Detection
– IGBT Overcurrent and Short-Circuit
– Internal Overtemperature Shutoff
TOP FEATURES:
Multi-process: MIG/MAG (GMAW) & ARC/MMA (SMAW)
600A @ 60% duty, 465A @ 100% duty
Lightweight (57 kg), rugged metal body
MODULE IGBT 20kHz inverter – efficient & reliable
Full safety: Over/under voltage, phase loss, over-temp
Anti-stick, ArcForce, and HotStart for smooth welding
Adjustable crater voltage/current from MIG torch
Electronic inductance control for arc tuning
Works with MIG wire (0.8–1.6mm) & electrodes (2.0–4.0mm)
Ideal for structural, heavy, and industrial welding
PROCESS:
GMAW – MIG/MAG Welding (Gas Metal Arc Welding)
Provides DC Constant Voltage output, ideal for high-speed, high-efficiency welds on mild steel, stainless steel, and aluminium using solid or flux-cored wire. Suitable for both light and heavy fabrication.
SMAW – ARC/MMA Welding (Shielded Metal Arc Welding)
Delivers DC Constant Current output, perfect for stick electrode welding in tough conditions—great for structural steel, repair, and maintenance jobs.
Multi-Process Capability
Supports both MIG/MAG (GMAW) and ARC/MMA (SMAW) welding modes, providing flexibility for a wide range of welding applications.
High Output Performance
Delivers 600A @ 60% duty cycle and 465A @ 100% duty cycle, making it ideal for heavy-duty and continuous production work.
MODULE IGBT Inverter Technology
Built on a 20kHz full-bridge inverter platform using advanced IGBT modules, ensuring stable arc performance, compact design, and high energy efficiency.
Inbuilt Protections
Comprehensive internal safeguards, including:
Under Voltage Protection
Over Voltage Protection
Phase Loss Protection
Internal Over Temperature Protection
IGBT Overcurrent / Short Circuit Protection
Antistick Technology (Burnback Control)
Prevents the wire electrode from sticking to the job at the end of the weld, ensuring clean finishes and reducing wear on consumables.
Electronic Inductance Control
Adjustable inductance feature allows welders to fine-tune the arc for either a smooth or aggressive weld profile—tailored to job requirements.
Crater Weld Setting
Crater current and voltage are fully adjustable and can be triggered directly from the MIG torch, helping prevent cracks at the end of a weld.
ArcForce & HotStart Functions
Enhances arc performance in ARC welding mode—improves arc ignition on dirty or rusty surfaces and ensures stable arc during out-of-position welding.
Durable & Portable Design
Only 57 kg with a robust metal body, rubber footing, and ergonomic handle for ease of mobility and on-site ruggedness.
Flexible Input Range
Accepts 415V, 3-phase input with wide voltage tolerance from 330V to 500V.
Wide Material Compatibility
Welds mild steel, stainless steel, aluminium, and specialty metals efficiently.
Electrode and Wire Compatibility
Supports MIG wire (0.8 to 1.6mm) and stick electrodes (6013, 7018; 2.0 to 4.0mm diameter).
Input Specifications:
Output Specifications:
Other Specifications:
Mechanical Specifications:
SUITABLE FOR:
WELDABLE MATERIALS:
ELECTRODE TYPE & DIAMETER:
STANDARD ACCESSORIES:
NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
