Genesis 600HD ARC

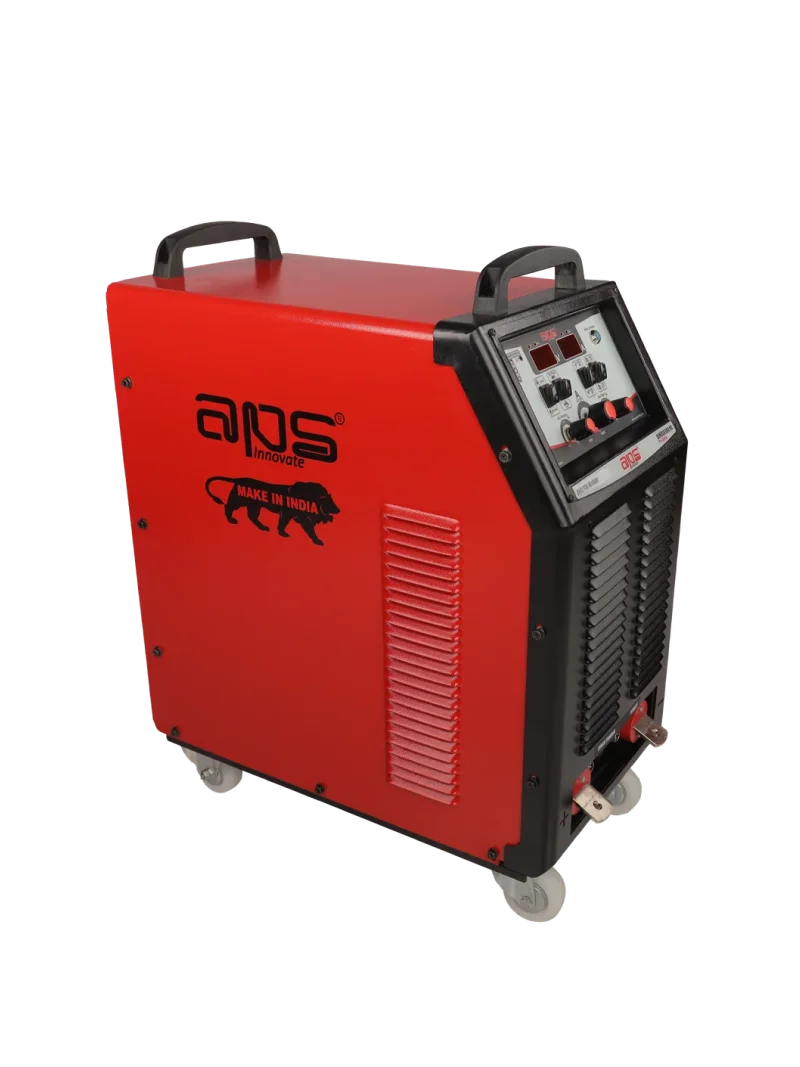

Genesis 600HD – The Ultimate Robust, Powerful, and Industrial Stick Electrode ARC Welding Machine
QUICK SPECIFICATION :
600A
@60% Duty
465A
@100% Duty
66.5 KG
Weight
600A Peak Output
handles 6.0mm electrodes and 30mm plate thickness for the heaviest fabrication jobs.
50% Less Power vs Transformers
IGBT inverter technology cuts electricity costs significantly.
IP23 Site Protection
dust and water-splash resistant, built for open yards and construction sites.
Generator Compatible
345–500V wide input range works reliably on DG sets across Indian sites.
Genesis 600HD — Complete Specifications
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 345 VAC – 500 VAC |
| Input @ 600A / 44V | 33 KVA / 42 HP, 46A @ 415V |
| Input @ 465A / 39V | 23 KVA / 28.5 HP, 31A @ 415V |
| Input @ 380A / 35V | 16.5 KVA / 21 HP, 23A @ 415V |
| Switching Device | IGBT Module |
| Inverter Frequency | 20 kHz Full Bridge |
| Output Specifications | |
| Output Current Range | 10A – 600A |
| Output @ 60% Duty | 600 Amps / 44V |
| Output @ 100% Duty | 465 Amps / 38V |
| Open Circuit Voltage | 75V – 95V DC |
| Welding Process | SMAW – DC Constant Current |
| Polarity | DC+ / DC− |
| Protection & Insulation | |
| Ingress Protection | IP23 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Thermal Protection | Auto Thermal Cutout |
| Generator Compatible | Yes (345V–500V range) |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 650 × 345 × 760 mm |
| Weight | 66.5 kg |
| Body | Full Metal |
| Base / Mobility | Wheels (rollable) |
| Lifting | Integrated Handle |
| Remote Control | Optional (8-metre remote) |
| Electrode Range | 1.6mm – 6.0mm |
| Job Thickness | 1.0mm – 30.0mm |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
Others Details :
| Electrode Compatibility & Job Thickness | ||||
|---|---|---|---|---|
| Electrode Type | Diameter Range | Material | Typical Application | Recommended Current |
| E6013 | 1.6mm – 3.15mm | Mild Steel | General fabrication, sheet metal, light structural | 40A – 130A |
| E7018 | 2.5mm – 6.0mm | Mild / Structural Steel | Heavy structural, pressure vessels, load-bearing joints | 80A – 320A |
| E308L / E316L | 2.5mm – 5.0mm | Stainless Steel | SS fabrication, food equipment, chemical industry | 70A – 220A |
| Carbon Steel | 4.0mm – 6.0mm | Carbon Steel | Heavy engineering, machinery frames, earth-moving equipment | 180A – 380A |
| Carbon Gouging Rod | 8.0mm – 12.0mm | All metals | Basic gouging & weld preparation at high current | 350A – 600A |
The Genesis 400HD Welding Machine by APS Welding is a powerful and reliable solution designed for a broad range of ARC welding applications. Weighing only 42kg, this lightweight machine combines portability with durability, making it the ideal choice for both on-site jobs and demanding industrial tasks. Whether you’re welding steel, stainless steel, or other metals, the Genesis 400HD guarantees superior performance, delivering clean, precise, and high-quality welds with every use. Its robust construction ensures that it can withstand tough work conditions while maintaining consistent, reliable results.
This versatile machine excels in MMAW (Manual Metal Arc Welding) and SMAW (Shielded Metal Arc Welding), providing a flexible solution for a variety of welding tasks. The Genesis 400HD is designed to meet the needs of both professional welders and enthusiasts alike, whether you’re working on construction projects, fabrication jobs, or maintenance and repair applications. Its easy-to-use controls and consistent output ensure a smooth welding experience, even in challenging environments. The Genesis 400HD is perfect for both heavy-duty industrial welding and on-the-go repairs, delivering top-notch results every time.
With the Genesis 400HD, you can expect unmatched efficiency, reliability, and productivity. This machine is a must-have for any welder looking for a machine that balances portability, power, and precision. Whether you’re in a workshop or on a construction site, the Genesis 400HD is ready to tackle your toughest welding challenges with ease.
For more information on welding techniques and applications, check out the Wikipedia article on Welding.
Order Codes :
| Order Code | Description |
| APS-G600HD | Genesis 600HD Power Source with wheels |
| AEH400A3M70SQ | Electrode Holder 400A with 3m 70 sqmm cable |
| AEH400A3M50SQ | Electrode Holder 400A with 3m 50 sqmm cable |
| AEC400A3M70SQ | Earthing Clamp 400A with 3m 70 sqmm cable |
| AEC400A3M50SQ | Earthing Clamp 400A with 3m 50 sqmm cable |
| APS-REM8MTR | Remote Control — 8 metres |
Standard Accessories Included
| Standard Accessories Included Every Genesis 600HD ships with industrial-grade accessories, ready for immediate heavy-duty deployment: | |||
|---|---|---|---|
| Accessory | Model | Specification | Link |
| Electrode Holder | EH40 | 400A rated, heavy-duty insulated grip | View EH40 → |
| Earthing Clamp | EC40 | 400A rated, strong spring-jaw design | View EC40 → |
| Welding Cable | 70 sqmm | Heavy-duty flexible copper cable for 600A operation | View Cables → |
Is the Genesis 600HD right for you?
✓ Best for
- Heavy structural steel & heavy fabrication yards
- Shipbuilding, repair yards & marine fabrication
- Pipe welding — oil, gas, water infrastructure
- Pressure vessel & boiler welding
- Steel plants & heavy engineering manufacturing
- Construction sites with DG set / generator power
- Basic carbon arc gouging operations.
✗ Not Recommended For
- DIY, hobbyist, or light home workshop use
- Thin sheet metal (under 1.5mm) — risk of burn-through
- Single-phase 230V only locations
- Occasional or very low current (under 60A) welding
- TIG or MIG welding — SMAW process only
- Facilities without 3-phase power or generator access
💡 NEED A LIGHTER MACHINE? single-phase applications or lighter fabrication, consider the Discover 200DX — 200A, single-phase, only 7.2 kg.
APPLICATION :
- Bridge & Pipeline Construction
- Heavy Structural Fabrication
- Pipeline & Pressure Vessels
- Infrastructure & Construction Sites
- Steel Plants & Manufacturing
- Power Plants & Boilers
- Earth-Moving Equipment
- Industrial Maintenance
Why Choose Genesis 600HD from APS Welding?
600A Heavy-Duty Output
Full 600 Amps at 60% duty cycle — handles 6.0mm electrodes and 30mm plate thickness for the most demanding industrial jobs.
50% Energy Saving
Advanced IGBT inverter technology consumes up to 50% less electricity than conventional transformer or rectifier machines — significant cost savings at scale.
IP23 Site Protection
Rated for dust and water-splash resistance — performs in shipyards, open fabrication yards, and outdoor construction environments.
Remote Control Ready
Optional 8-metre remote for current adjustment from the welding position — ideal for pipe welding at height, distance, or confined spaces.
ISO 9001:2015 Certified
APS Welding’s certified facility in Valsad, Gujarat — quality-controlled production, MSME registered. 100% Made in India.
After-Sales Support
Nationwide service network, spare parts availability, and dedicated technical support team across India.
Is the Genesis 600HD right for you?
✓ Best for
- Heavy structural steel & heavy fabrication yards
- Shipbuilding, repair yards & marine fabrication
- Pipe welding — oil, gas, water infrastructure
- Pressure vessel & boiler welding
- Steel plants & heavy engineering manufacturing
- Construction sites with DG set / generator power
- Basic carbon arc gouging operations.
✗ Not Recommended For
- DIY, hobbyist, or light home workshop use
- Thin sheet metal (under 1.5mm) — risk of burn-through
- Single-phase 230V only locations
- Occasional or very low current (under 60A) welding
- TIG or MIG welding — SMAW process only
- Facilities without 3-phase power or generator access
💡 NEED A LIGHTER MACHINE? single-phase applications or lighter fabrication, consider the Discover 200DX — 200A, single-phase, only 7.2 kg.
Quality Certifications & Compliance
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Frequently Asked Questions – Stick Arc Welding Machines (SMAW)
What type of welding does Genesis 600HD support?
Genesis 600HD supports Stick Arc Welding (MMA / SMAW) and is suitable for heavy-duty industrial applications.
Is Genesis 600HD suitable for continuous industrial use?
Yes. It is designed for continuous welding operations with high duty cycles, making it ideal for fabrication yards and heavy industries.
What industries commonly use this welding machine?
It is widely used in structural fabrication, shipyards, power plants, heavy engineering, and repair workshops.
Does the machine support thick electrodes?
Yes. Genesis 400HD is designed to handle heavy-duty electrodes required for thick material welding.
Is the machine safe for industrial environments?
Absolutely. It is built with industrial-grade protection, robust casing, and complies with international safety standards.
Is Genesis 600HD manufactured in India?
Yes. Genesis 400HD is manufactured in India at an ISO 9001:2015 certified facility by APS Welding Machines.
NOTE : Continuous development entitles us to change specifications without notice. Pictures are for reference only.
