@60% Duty
@100% Duty
Weight
stable arc at 85%+ efficiency with precise current control.
reliable on DG sets and generator power at heavy industrial sites.
handles carbon electrodes up to 19mm for deep, fast gouging.
mobile heavy-duty cabinet for shop floor and site deployment.
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 330 VAC – 500 VAC |
| Input KVA @ 1000A | 51 KVA |
| Input Cable | 4-core 10 sqmm, 4 meters, open leads |
| Switching Device | IGBT Module |
| Inverter Frequency | 20 kHz Full Bridge |
| Output Specifications | |
| Output Current Range | 25A – 1000A |
| Output @ 60% Duty | 1000 Amps |
| Output @ 100% Duty | 775 Amps |
| Open Circuit Voltage | 85 VDC (max) |
| Welding Process | CAG + SMAW — DC Constant Current |
| Polarity | DC+ / DC− |
| Protection & Insulation | |
| Ingress Protection | IP21 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Thermal Protection | Auto Thermal Cutout |
| Over-Voltage Protection | Yes |
| Hot Start / Arc Force | Yes |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 1125 × 460 × 945 mm |
| Weight | 182 kg |
| Body | Full Metal Cabinet |
| Base / Mobility | Wheel-Mounted |
| Lifting | Integrated Handle |
| Digital Display | Yes — Real-time monitoring |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |

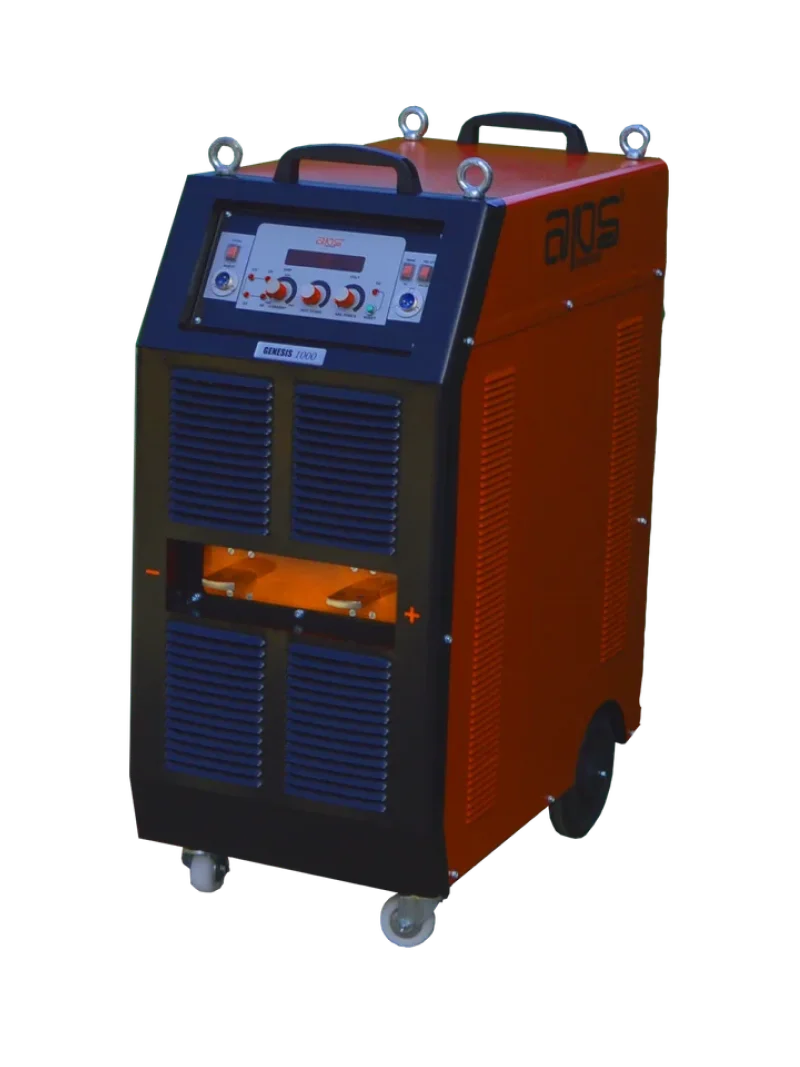

APS Welding proudly presents the Genesis 1000, a high-performance Stick Electrode ARC Welding Machine designed for serious professionals. The Genesis 1000 Welding Machine is engineered to deliver exceptional power and precision while maintaining impressive portability. Weighing just 182 Kg, the Genesis 1000 handles tough industrial welding jobs with ease, making it a true small wonder in its class.
Whether you’re working in the field or in a fabrication shop, the Genesis 1000 Welding Machine ensures consistent, reliable performance, even under the most demanding conditions. Experience unmatched durability, compact design, and superior welding capabilities with the Genesis 1000—your ultimate partner in productivity.
The Genesis 1000 Welding Machine combines power with precision. Designed to tackle the most challenging welding tasks, the Genesis 1000 stands out for its portability and reliable performance. From industrial applications to fieldwork, the Genesis 1000 ensures that you can count on the same consistent results every time.
With the Genesis 1000 Welding Machine, you’re choosing the best in class. Its compact size, powerful performance, and durability make it the perfect solution for professionals in various industries. Whether you’re welding on-site or in the workshop, the Genesis 1000 delivers outstanding results, every time.
| Carbon Electrode Application Range – Genesis 1000 | ||||
|---|---|---|---|---|
| Carbon Electrode Dia. | Recommended Current | Groove Width (approx.) | Material | Typical Application |
| 6 mm | 200A – 350A | 7–9 mm | Mild / Carbon Steel | Weld defect removal, light back gouging |
| 8 mm | 300A – 450A | 9–12 mm | Mild / Structural Steel | Back gouging, joint preparation |
| 10 mm | 400A – 600A | 12–15 mm | Carbon / Alloy Steel | Heavy weld repair, foundry casting defects |
| 13 mm | 550A – 750A | 15–20 mm | Structural / Stainless Steel | Shipbuilding, pressure vessel defect removal |
| 16 mm | 700A – 900A | 18–25 mm | Heavy Carbon Steel | Heavy fabrication, large casting repair |
| 19 mm | 850A – 1000A | 22–30 mm | Heavy Structural Steel | Maximum output — thick plate, bridge & ship structures |
| Accessories | |||
|---|---|---|---|
| Accessory | Model | Specification | Link |
| Gouging Torch | Heavy-Duty CAG | 1000A rated, handles carbon electrodes up to 19mm dia. | View CAG Range → |
| Electrode Holder | EH60 | 600A+ rated, heavy-duty insulated grip for SMAW | View EH60 → |
| Earthing Clamp | EC100 | 1000A rated, heavy-duty spring-jaw design | View EC100 → |
| Welding Cable | 70 sqmm | Heavy-duty flexible copper cable rated for 1000A operation | View Cables → |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Easy electrode handling and precise control
Saves time in metal preparation and repair
Reduces operator fatigue with smooth arc control
Ensures consistent results in demanding applications
| Safety Feature | Description | Benefit |
|---|---|---|
| Industrial Safety Design | Designed as per industrial safety standards | Ensures safe and reliable operation in demanding environments |
| Stable Arc Performance | Optimized arc stability minimizes spatter and sparks | Cleaner work area and improved operator safety |
| Accessory Compatibility | Compatible with standard safety accessories | Easy integration with existing safety gear and setups |
| Protection Testing | Tested for electrical and thermal protection | Reduces risk of overheating and electrical hazards |
A carbon arc gouging machine is used to remove metal, repair weld defects, and prepare surfaces for re-welding using a carbon electrode and electric arc.
Yes, Genesis 1000 is designed for heavy-duty industrial applications requiring high current and continuous operation.
Yes, APS Welding is an ISO 9001 certified manufacturer of welding and cutting equipment.
Yes, the Genesis 1000 features a high duty cycle and efficient cooling system for continuous use.
