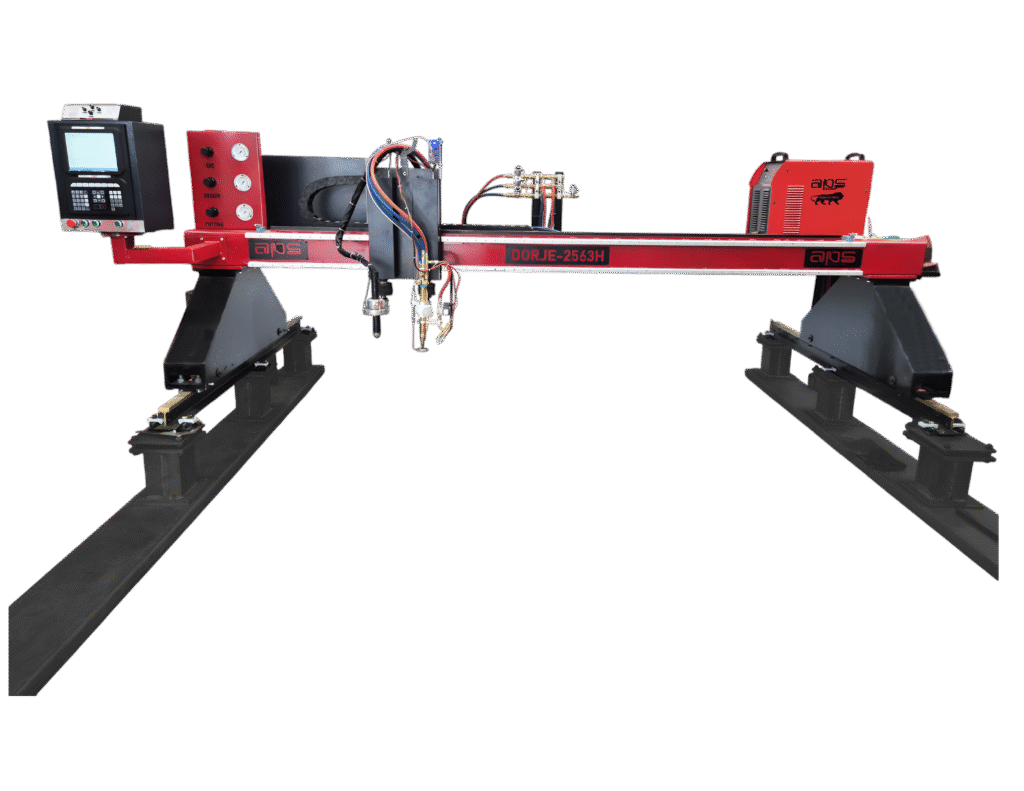

In today’s high-demand fabrication environment, precision and speed aren’t luxuries—they’re necessities. That’s exactly where the CNC Gantry Cutting Machine proves invaluable. Designed for excellence, the DORJE Series by Advanced Power Sources Ltd. (APS) delivers high-speed, high-accuracy metal cutting across a wide range of materials.
A CNC Gantry Cutting Machine is a computer-guided system that uses a plasma torch mounted on a rigid gantry frame to execute flawless, repeatable cuts. Operated through pre-programmed instructions, it ensures consistent performance, making it a reliable solution for heavy-duty fabrication projects.
Whether you’re cutting mild steel, stainless steel, or aluminum, the CNC Gantry Cutting Machine offers unmatched efficiency and durability, making it ideal for workshops, manufacturing plants, and automation-driven industries.
For a deeper understanding of CNC systems and their evolution, check out the Wikipedia article on Numerical Control.
| Model No. | Dimensions (mm) | Rail Length (mm) | Cutting Area (mm) | ||||
|---|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |||
| DORJE-1530H | 1250 | 1150 | 2350 | 3100 | 50 | 4000 | 1500 x 3000 |
| DORJE-1563H | 1250 | 1150 | 2350 | 3100 | 50 | 8000 | 1500 x 6300 |
| DORJE-2063H | 1250 | 1150 | 2850 | 3600 | 50 | 8000 | 2000 x 6300 |
| DORJE-2563H | 1350 | 1400 | 3550 | 4520 | 100 | 8000 | 2500 x 6300 |
| DORJE-25120H | 1350 | 1400 | 3550 | 4520 | 100 | 14000 | 2500 x 12000 |
| DORJE-3063H | 1350 | 1400 | 4050 | 4820 | 100 | 8000 | 3000 x 6300 |
| DORJE-30120H | 1350 | 1400 | 4050 | 4820 | 100 | 14000 | 3000 x 12000 |
| Specification | Details |
|---|---|
| Maximum Freewheeling Velocity | 12,000 mm/min |
| Flame Cutting Velocity Range | 50 to 700 mm/min |
| Flame Cutting Thickness Range | 5 mm to 200 mm |
| Position Accuracy | ±0.5 mm/meter |
| Repeatability | ±0.5 mm/meter |
| Shape Accuracy | ±0.5 mm/meter |
| Kerf Compensation | Up to 15 mm (in 0.1 mm increments) |
| Torch Height Adjustment Range | <150 mm (Flame/Plasma) |
| Specification | Details |
|---|---|
| Torch Type and Quantity | – Oxyfuel Torch: 1 No. (PNME type, Material: Mild Steel) – Plasma Torch: 1 No. (Material: MS / SS, depends on power source and torch selection) – Torch quantity customizable as per requirement |
| Cutting Thickness Range | – Oxyfuel Cutting: 5 mm to 200 mm (Piercing up to 80 mm) – Plasma Cutting: 1 mm to 35 mm (as per plasma power source capacity) |
| Drive Mode | – Servo Motor Based System – Dual Drive on Y-Axis – Single Drive on X-Axis |

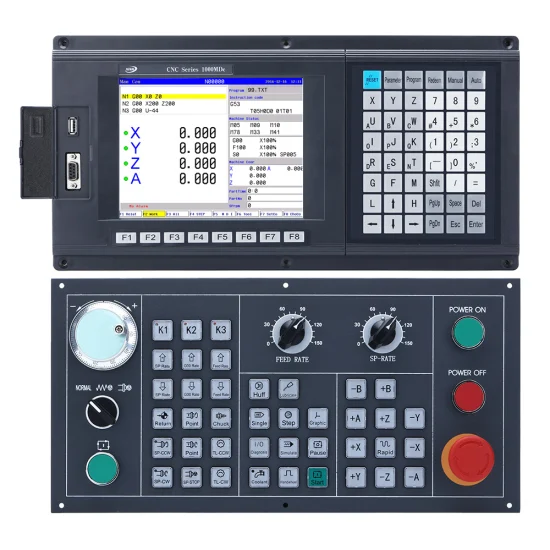

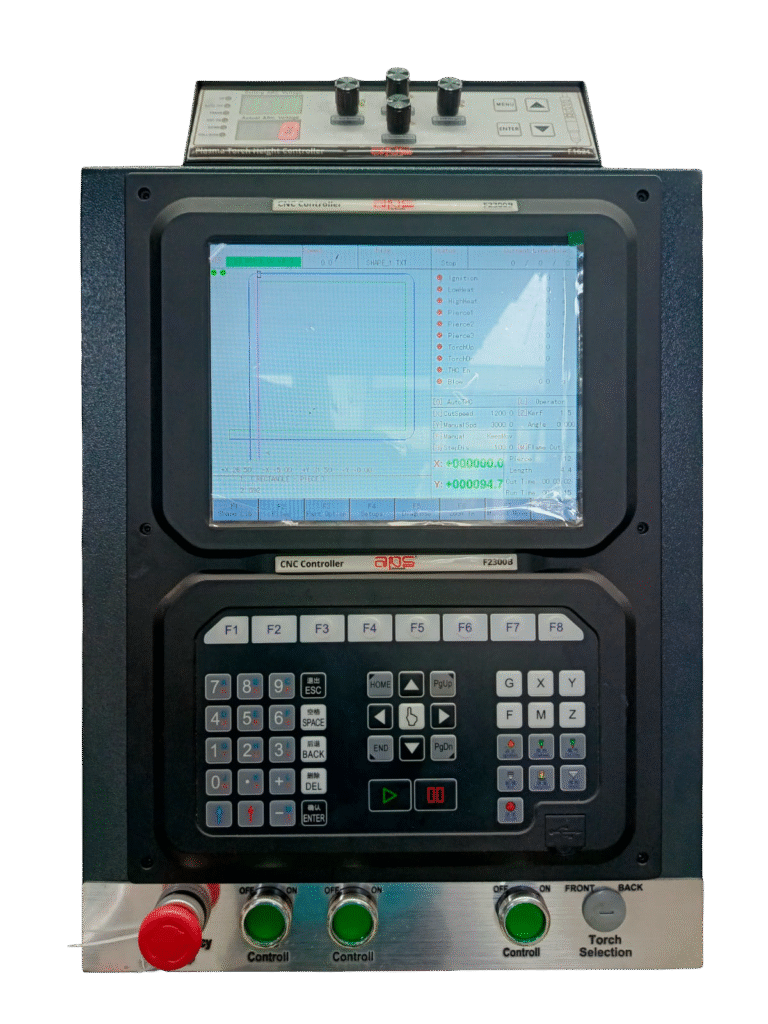

Display: 10.4” high-res color LCD
CPU: Industrial ARM9
Memory: 256MB onboard, USB 1.1 with 16GB support
Key Features:
49 preloaded shape files
G-code compatibility (TXT, NC, MPG, B3)
Functions: Zoom, Rotate, Mirror, Array, Angle
Power-off memory: resumes last cut position
THC/CHC: Plasma and flame torch height control
Software:

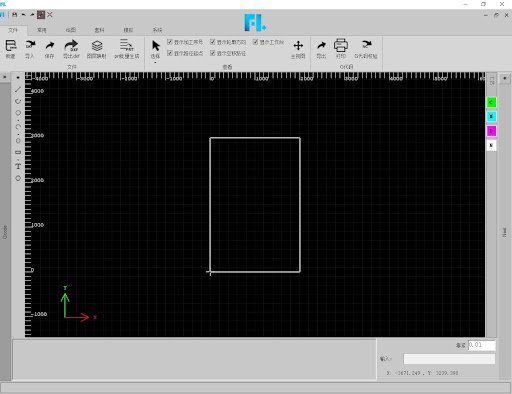

– FLCAM & FLCNC for part generation and nesting
– Simulation and verification tools
Import Support: DXF, PLT, CAM, G-code formats
Controller Functions: Rotate, Zoom, Mirror, Array, Angle
Power-Off Memory: Automatically resumes last position
Dual servo motors on Y-axis, single on X-axis

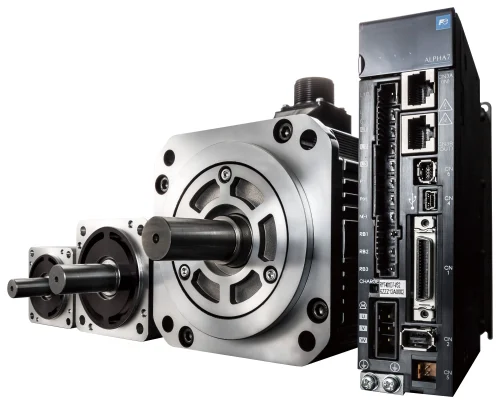

Servo brands: Panasonic/Fuji with precision planetary gearboxes
Rack & pinion with spring-loaded, backlash-free engagement
Designed for smooth, accurate, vibration-free operation

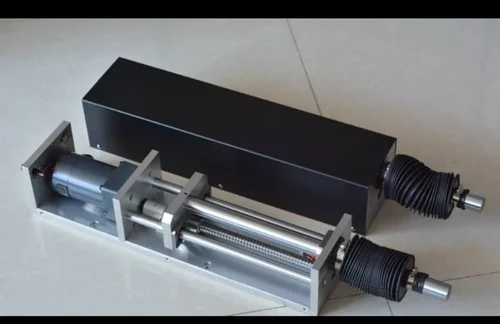

Motorized height control for plasma/flame cutting
Accuracy: 0.01–0.005mm with DC motor & PWM
Ball screw for smooth, backlash-free motion
Dust-protected casing for durability
Lift speed: 15 m/sec | Range: 150–200mm
We offer widest range of consumable option for a variety of welding application needs.
Quality is the core of our products. We use the best raw materials and manufacturing process to achieve perfect quality.
We make our products in-house and thus provide our customers with a value for money product.
We offer Bulk discount for OEM companies and Dealers - Distributors.
CNC controller with THC & CHC
Servo drives & motors
Torch lifters
Anti-collision system
Nesting software
Gas panel, wiring, drag chains
Plasma torch and flame cutting system
Complete mechanical gantry structure
Electrical connection & stabilizer (40KVA)
Overhead crane & operator for install
Compressor (5–10HP) with 40CFM air dryer
Welding tools, gas supplies, and steel plates
Cutting table and civil foundation (drawings provided)
Warranty: 12 months from installation or 13 months from dispatch
Installation & Training: 3 days included, additional days chargeable
Inspection: In-house inspection free; third-party optional
Force Majeure: APS is not liable for delays due to uncontrollable events
