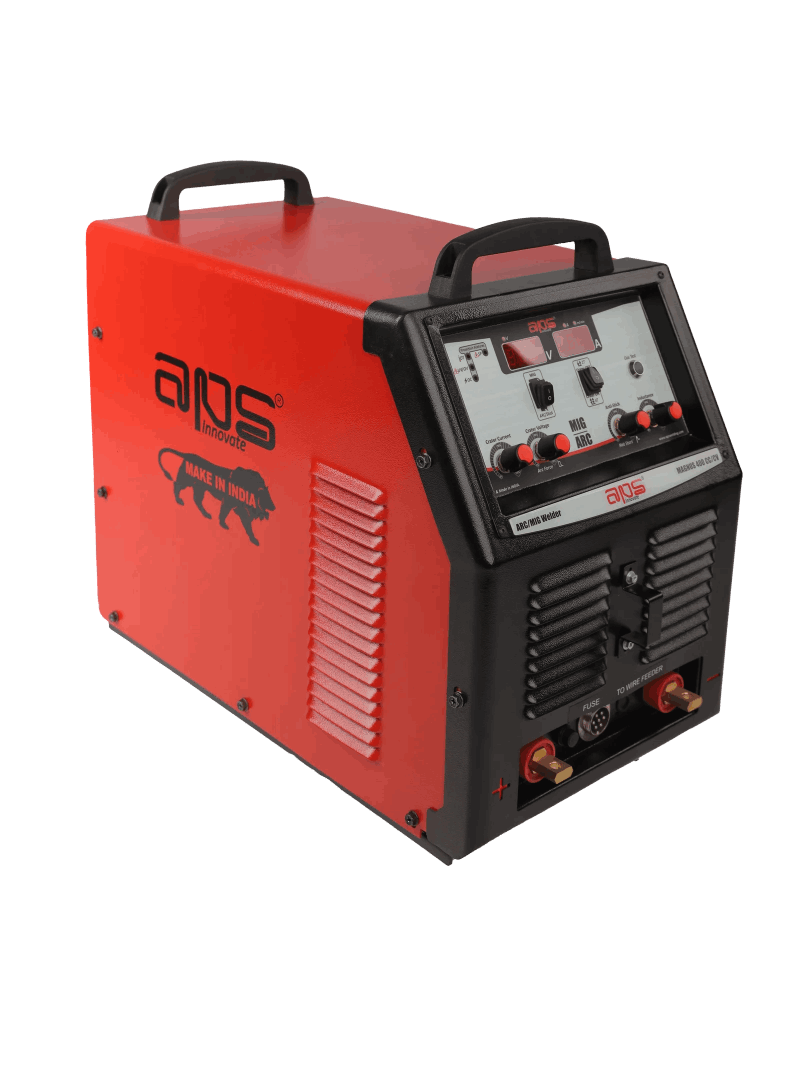

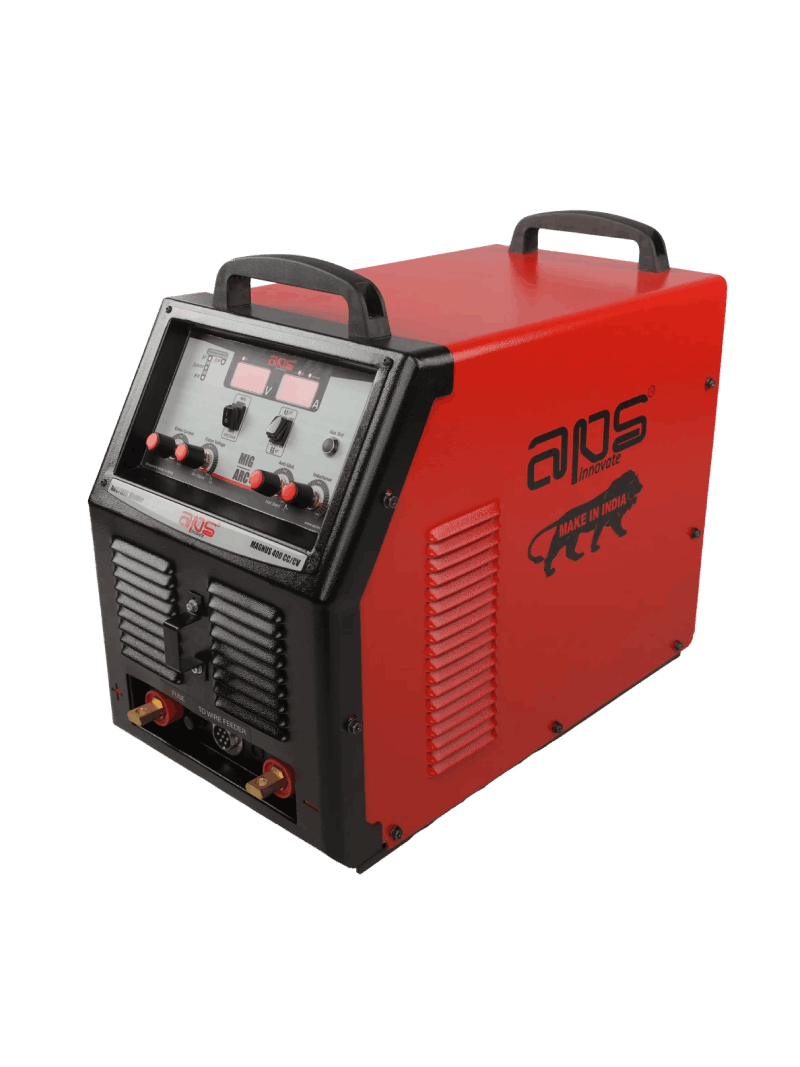

400 Amp MIG / MAG / ARC multi-process welder — IGBT MODULE inverter technology, CCCV output, built for continuous heavy fabrication and industrial production.
@60% Duty
@100% Duty
Metal Body
DC Constant Voltage — mild steel, stainless steel, and aluminium with minimal spatter.
Dual output mode — uniform penetration and consistent weld quality during continuous MIG welding operations.
Seamless switching between MIG/MAG and ARC/MMA — one machine for multiple applications.
Constant current / constant voltage output ensures uniform penetration and clean weld bead finish.
Uses up to 50% less electricity than older transformer-based systems — reduces operational costs.

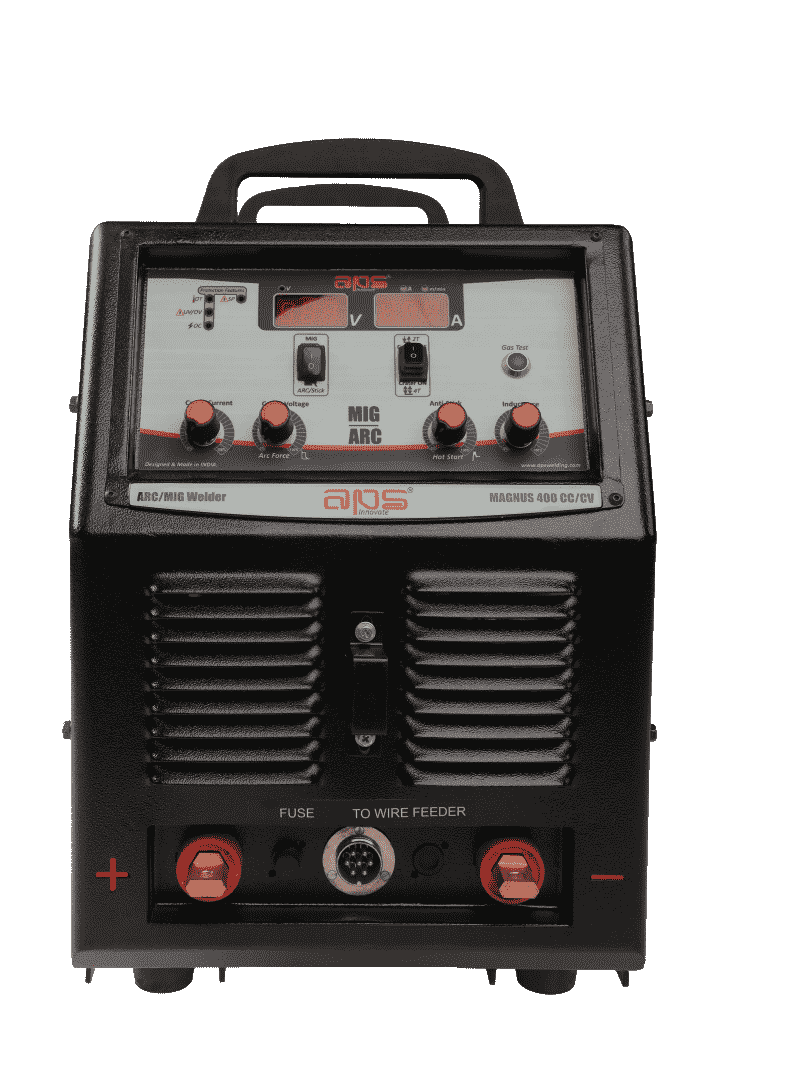

Intuitive digital display and controls make setup and parameter adjustment fast and easy.
Operates from 330–500VAC — compatible with DG set / generator power on Indian construction sites.
Auto thermal cutout and overload protection ensures long equipment life in continuous operation.
The 365–500V wide input voltage range makes it particularly well-suited for construction sites in India where DG set or generator power is the primary supply — a common challenge for heavy infrastructure projects.
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 330 VAC – 500 VAC |
| Input KVA @ 400A | 16.8 KVA |
| Input Cable | 4-core 2.5 sqmm, 4 m |
| Switching Device | IGBT Module |
| Output Specifications | |
| Output Current Range | 10A – 400A |
| Output @ 60% Duty | 400 Amps |
| Output @ 100% Duty | 310 Amps |
| Open Circuit Voltage | 85 VDC (max) |
| Output Mode | CC / CV (CCCV) |
| Protection & Insulation | |
| Ingress Protection | IP21 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Thermal Protection | Auto Thermal Cutout |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 565 × 300 × 500 mm |
| Weight | 45 kg |
| Body | Full Metal Chassis |
| Base | Rubber Foot |
| Lifting | Integrated Handle |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
The Magnus 400 CCCV supports a wide range of welding consumables — from precise MIG welding with 0.8mm wire to heavy-duty applications using 1.6mm wire, along with stick electrodes (E6013, E7018) from 2.0mm to 4.0mm for fabrication and structural welding.
| Welding Type | Consumable | Diameter Range | Material | Typical Application | Recommended Current |
|---|---|---|---|---|---|
| MIG Welding | MIG Wire | 0.8mm – 1.6mm | Mild Steel / Alloy Steel | Fabrication, automotive, production welding | Depends on wire size & voltage settings |
| Stick Welding | E6013 | 2.0mm – 4.0mm | Mild Steel | General fabrication, repair work, light structural | 40A – 140A |
| Stick Welding | E7018 | 2.0mm – 4.0mm | Mild / Structural Steel | Heavy fabrication, structural welding, load-bearing joints | 80A – 200A |
| Stick Welding | Stainless Steel (E308L / E316L) | 2.5mm – 4.0mm | Stainless Steel | SS fabrication, food & chemical industry | 70A – 180A |
| Stick Welding | Carbon Steel Electrodes | 3.15mm – 5.0mm | Carbon Steel | Heavy engineering, machinery, construction | 120A – 250A |
APS Welding proudly presents the MIG Welding Machine 400 Amp – the Magnus 400CCCV, a multi-process CCCV welding powerhouse designed for industrial excellence. Delivering a maximum output of 400 amps, this MIG Welding Machine 400 Amp is ideal for fabrication shops, construction sites, and heavy-duty welding operations.
Built with advanced MODULE IGBT inverter technology, the MIG Welding Machine 400 Amp ensures smooth arc stability, energy efficiency, and extended machine life. It supports both MIG/MAG (GMAW) and ARC/MMA welding, making it versatile and reliable for a wide range of applications.
The machine’s rugged metal body, portability, and intelligent control panel help reduce spatter, enhance weld quality, and improve worksite productivity. From structural steel to stainless steel, the MIG Welding Machine 400 Amp is your trusted solution for consistent, clean, and professional welds.
Learn more about welding technologies like GMAW and MMAW on Wikipedia – Welding.
The Magnus 400 CCCV is a 3-phase industrial multi-process machine — it is not a general-purpose or entry-level welder. Understanding where it excels (and where it doesn’t) helps buyers make the right call.
The Magnus 400 CCCV’s powerful 400A output, dual CC/CV capability, and rugged industrial design make it a preferred choice for MIG/MAG and stick welding across a wide range of industrial sectors.
The 330–500V wide input voltage range makes it particularly well-suited for construction sites in India where DG set or generator power is the primary supply — a common challenge for heavy infrastructure projects
Built for demanding industrial applications, the Magnus 400 CCCV delivers a powerful 400 Amp output, making it ideal for continuous welding operations. It easily handles thick materials and long duty cycles without compromising performance.
Equipped with Constant Current (CC) and Constant Voltage (CV) modes, this machine ensures a smooth and stable arc. It provides excellent weld quality with minimal spatter, making it suitable for both MIG/MAG and Stick welding processes.
Designed for heavy fabrication, structural work, and manufacturing units, the Magnus 400 CCCV performs reliably in tough working environments. It supports a wide range of welding applications across industries.
Manufactured under strict quality control standards, this machine ensures consistency, durability, and high performance. Certification reflects a commitment to quality and customer satisfaction.
Backed by a wide service network and easily available spare parts, ensuring minimal downtime. Quick support and maintenance availability make it a dependable choice for long-term use.
| Accessory | Model | Specification | Link |
|---|---|---|---|
| MIG Torch | 24KDHD | Heavy-duty MIG torch, rated for continuous industrial MIG/MAG welding | View 24KDHD → |
| Earthing Clamp | EC40 | 400A rated, strong spring-jaw design with 35 sqmm, 3 m cable | View EC40 → |
| Welding Cable | 35 sqmm | Heavy-duty flexible copper cable, rated for 400A operation | View Cables → |
| CO₂ Regulator | Preheater + FM | CO₂ regulator with preheater and flowmeter — ready for MIG/MAG shielding gas | View Accessories → |
| Accessory | Model | Specification | Link |
|---|---|---|---|
| Argon Regulator | Standard | Argon gas regulator with flowmeter for precise shielding gas control in TIG/MIG welding | View Accessories → |
| Aluminium Welding MIG Torch | Special Type | Specialized MIG torch designed for aluminium welding with smooth wire feeding | View Torches → |
| Rollers & Liners | Aluminium Type | Dedicated rollers and liners for aluminium wire feeding to ensure stable and kink-free operation | View Components → |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
How to Choose a Welding Machine
Welding Guides
Magnus 400 CCCV is a 400 Amp heavy-duty MIG welding machine designed for continuous and industrial welding applications.
Yes. It is specifically built for heavy fabrication, structural welding, and industrial workshop environments.
The machine is suitable for welding mild steel and structural steel materials used in fabrication and industrial manufacturing.
CCCV output ensures a stable arc, uniform penetration, and consistent weld quality during continuous MIG welding operations.
Yes. APS Welding is an ISO 9001:2015 certified and MSME registered manufacturer. CE compliance is available for applicable export models.
Magnus 400 CCCV is designed for regular to continuous industrial welding. For extreme 24x7 heavy-load environments, proper duty cycle management is recommended.
Yes. APS Welding provides technical support, spare parts availability, and after-sales service support.
