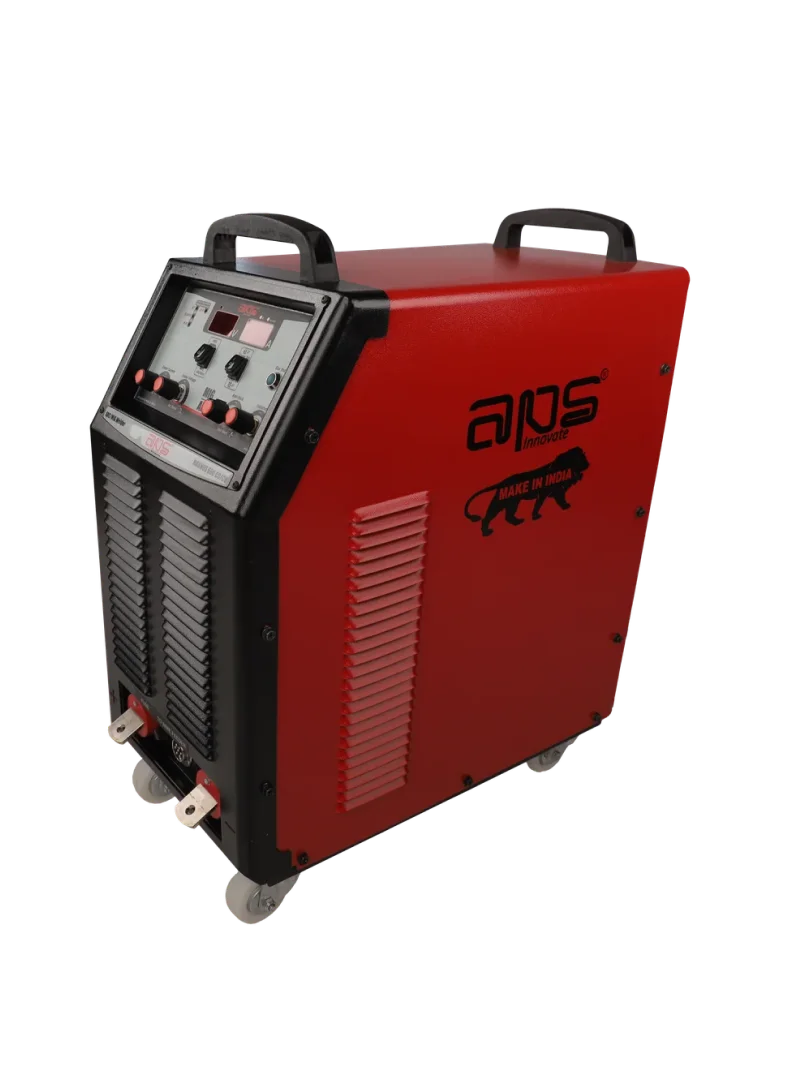

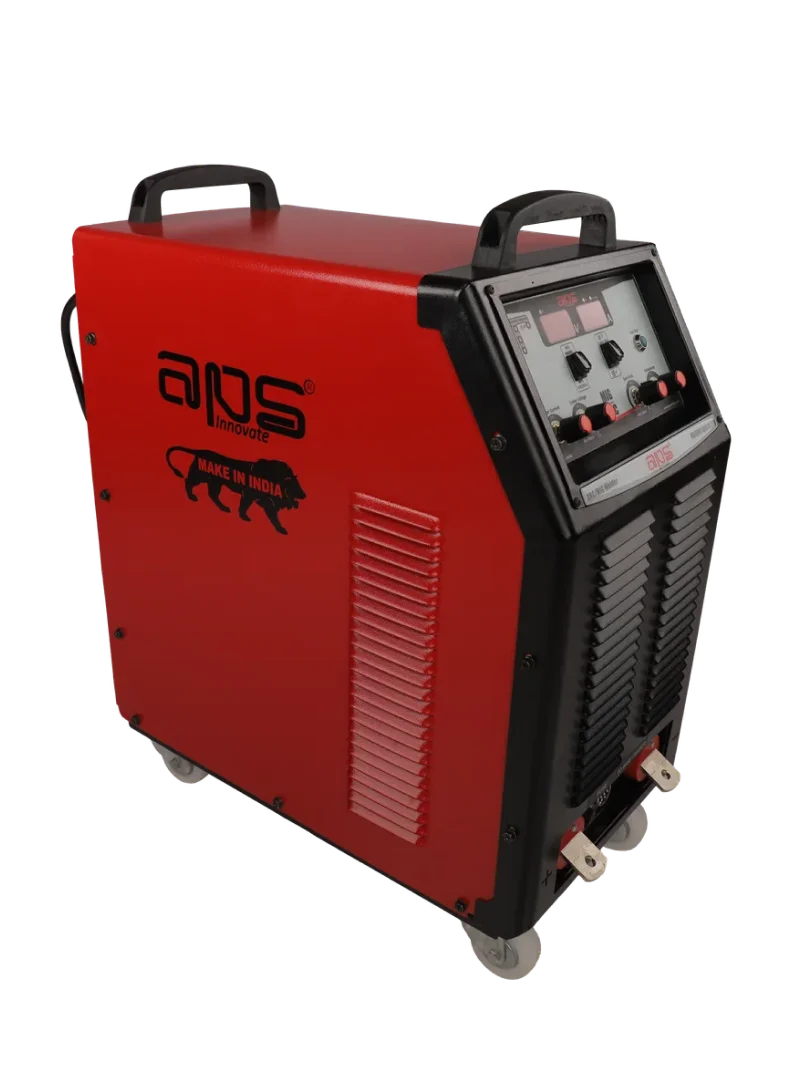

600 Amp MIG / MAG / ARC multi-process CCCV welder — IGBT MODULE inverter, built for the heaviest industrial fabrication, structural steel, shipbuilding, and automation-compatible production lines.
@60% Duty
@100% Duty
Metal Body
DC Constant Current — stable, strong welds using stick electrodes, ideal for heavy-duty tasks and challenging site conditions.
Dual output mode — versatile across applications with consistent, stable arc and uniform weld bead quality.
Full 600 Amps at 60% duty cycle and 465A at 100% — handles the largest electrodes and thickest plates in production.
Seamless switching between MIG/MAG (GMAW) and ARC/MMA (SMAW) — one machine for multiple applications.
Constant current / constant voltage output ensures uniform penetration and clean weld bead finish at all current levels.
Uses up to 50% less electricity than older transformer-based welding systems — significant reduction in running costs for high-amperage operation.
Operates from 365–500VAC — compatible with DG set / generator power on Indian construction and infrastructure sites..
Compatible with welding automation systems, welding tractors, and column & boom setups for semi-automated production lines.
Intuitive controls for precise current and voltage adjustment — quick setup and parameter change on the shop floor.
Overcurrent, overvoltage, thermal overload, and short circuit protection — safe operation in extreme industrial environments.
The 365–500V wide input voltage range makes it particularly well-suited for construction sites in India where DG set or generator power is the primary supply — a common challenge for heavy infrastructure projects.
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 365 VAC – 500 VAC |
| Input KVA @ 600A | 32.7 KVA |
| Input Cable | 4-core 6 sqmm, 4 m |
| Switching Device | IGBT Module |
| Output Specifications | |
| Output Current Range | 10A – 600A |
| Output @ 60% Duty | 600 Amps |
| Output @ 100% Duty | 465 Amps |
| Open Circuit Voltage | 85 VDC (max) |
| Output Mode | CC / CV (CCCV) |
| Protection & Insulation | |
| Ingress Protection | IP21 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Thermal Protection | Auto Thermal Cutout |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 590 × 340 × 690 mm |
| Weight | 59 kg |
| Body | Full Metal Chassis |
| Base | Wheels |
| Lifting | Integrated Handle |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
The Magnus 600 CCCV supports a wide range of weldable materials including Steel, Mild Steel, Carbon Steel, Stainless Steel, Aluminium, and Speciality Metals. It is compatible with MIG wire from 0.8mm to 1.6mm for precise to heavy-duty applications, as well as stick electrodes (E6013, E7018) ranging from 2.0mm to 6.0mm, making it ideal for fabrication, structural welding, and demanding industrial use.
| Welding Type | Consumable | Diameter Range | Material | Typical Application | Recommended Current |
|---|---|---|---|---|---|
| MIG Welding | MIG Wire | 0.8mm – 1.6mm | Steel, Mild Steel, Carbon Steel, Stainless Steel, Aluminium, Speciality Metals | Fabrication, automotive, production welding | Depends on wire size & voltage settings |
| Stick Welding | E6013 / E7018 | 2.0mm – 6.0mm | Steel, Mild Steel, Carbon Steel | General fabrication, repair work, structural welding | Depends on electrode size |
| Stick Welding | Stainless Steel (E308L / E316L) | 2.5mm – 5.0mm | Stainless Steel | SS fabrication, food & chemical industry | Depends on electrode size |
| Stick Welding | Speciality Electrodes | 2.5mm – 5.0mm | Speciality Metals | Maintenance, repair, hardfacing applications | Depends on electrode type |
| Accessory | Model | Specification | Link |
|---|---|---|---|
| MIG Torch | 36KDHD | Heavy-duty 600A MIG torch rated for continuous industrial MIG/MAG welding | View 36KDHD → |
| Earthing Clamp | 600A Rated | 600A rated, heavy spring-jaw design with 50 sqmm, 3 m cable | View Clamps → |
| Welding Cable | 50 sqmm | Heavy-duty flexible copper cable, rated for 600A operation | View Cables → |
| CO₂ Regulator | Preheater + FM | CO₂ regulator with preheater and flowmeter — ready for MIG/MAG shielding gas | View Accessories → |
| Accessory | Model | Specification | Link |
|---|---|---|---|
| Argon Regulator | Single / Double Stage | High-precision gas regulator for Argon shielding, suitable for TIG & MIG welding | View Regulator → |
| Aluminium MIG Torch | Spool Gun / Teflon Liner Torch | Specialized torch for aluminium welding with smooth wire feeding and minimal resistance | View Torch → |
| Rollers & Liners (Aluminium) | U-Groove Rollers + Teflon Liners | Designed for soft aluminium wire feeding, prevents deformation and ensures stable arc | View Accessories → |
APS Welding proudly presents the MIG Welding Machine 600 Amp, known as the Magnus 600CCCV — a powerful, multi-process solution built for unmatched performance in ARC/MMA and MIG/MAG/GMAW welding operations. This MIG Welding Machine 600 Amp is ideal for demanding industrial applications where power, reliability, and weld quality matter most.
Equipped with advanced MODULE IGBT inverter technology, the MIG Welding Machine 600 Amp offers outstanding energy efficiency, precise arc control, and reduced spatter, ensuring clean and stable welds. Its rugged construction supports consistent performance across manufacturing plants, construction sites, and heavy-duty workshops.
Engineered for safety and durability, the MIG Welding Machine 600 Amp includes built-in protections against overloads, overheating, and short circuits. It’s built to thrive in extreme environments and is the preferred choice for professionals who require superior welding capability and reduced energy consumption.
Learn more about MIG/MAG welding processes on Wikipedia – Welding.
The Magnus 600 CCCV is a 3-phase industrial multi-process machine — it is not a general-purpose or entry-level welder. Understanding where it excels (and where it doesn’t) helps buyers make the right call.
The Magnus 600 CCCV welding machine is equipped with advanced safety features to protect both the operator and the equipment:
Overcurrent Protection
Thermal Overload Protection
Stable Voltage Control
Industrial-Grade Insulation
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
How to Choose a Welding Machine
Welding Guides
CCCV stands for Constant Current & Constant Voltage, allowing the welding machine to support multiple welding processes with stable output and superior arc control.
Yes, with 600 Amps output and high duty cycle, it is ideal for heavy fabrication and thick material welding.
Yes, Magnus 600 CCCV is compatible with welding automation systems and tractors.
APS Welding provides pan-India service and technical support.
