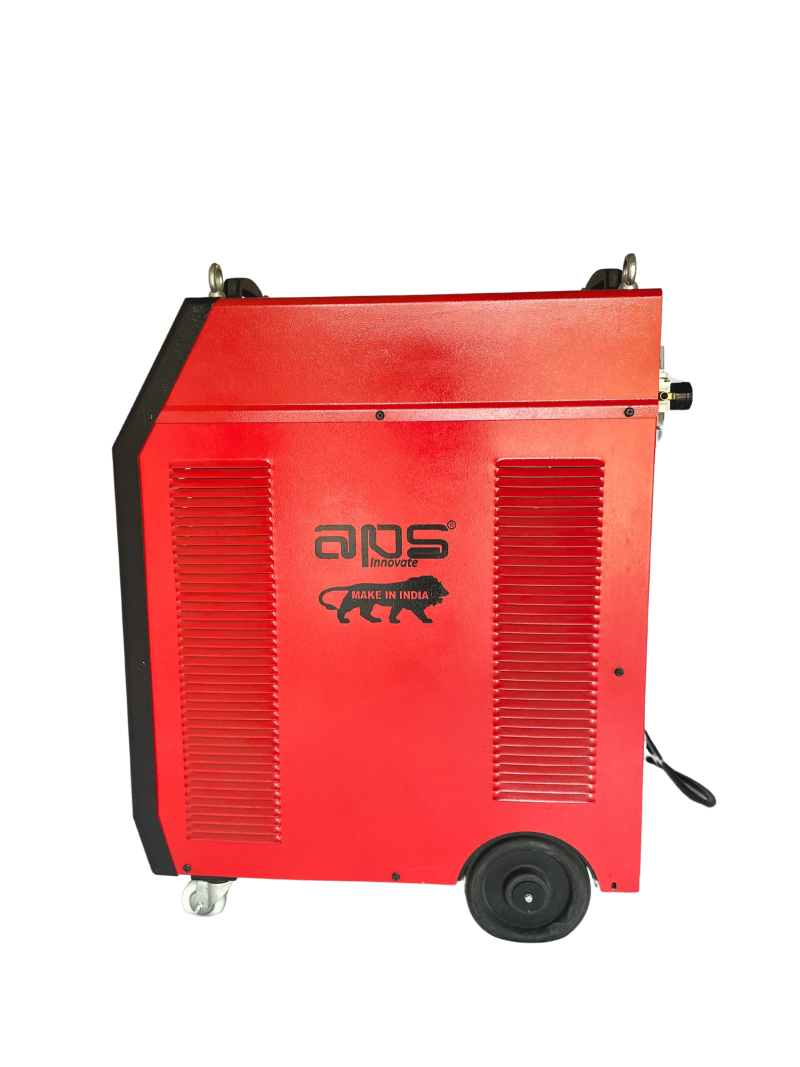

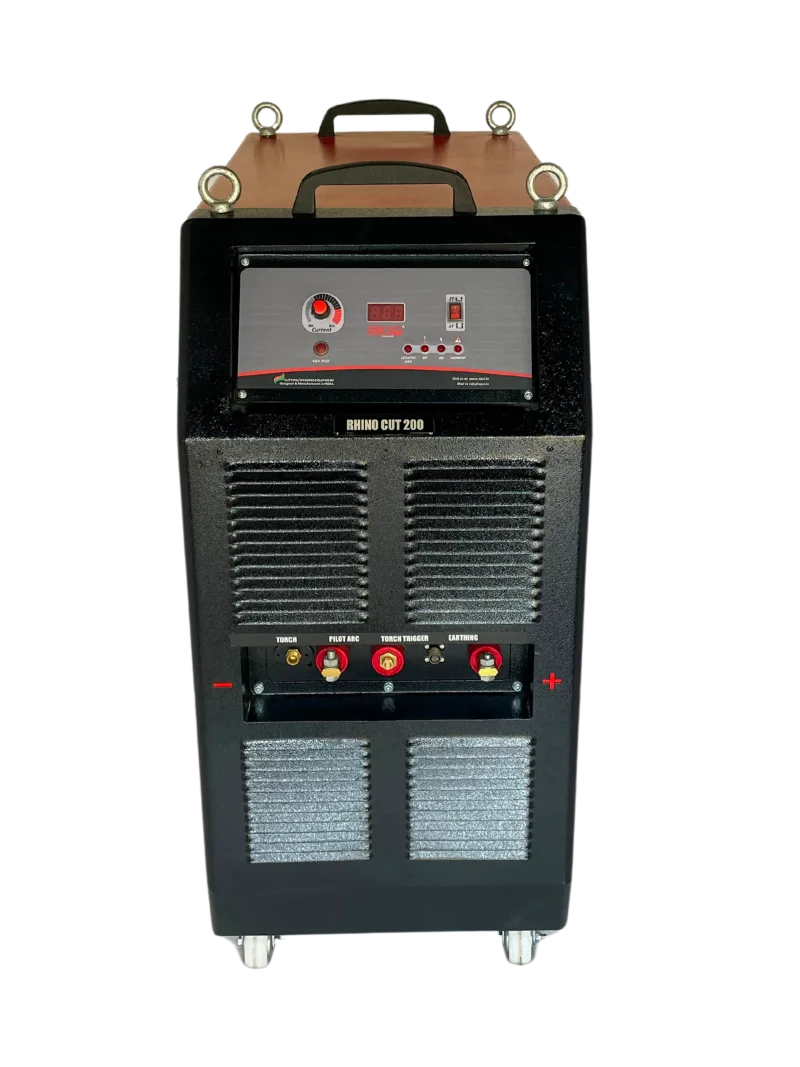

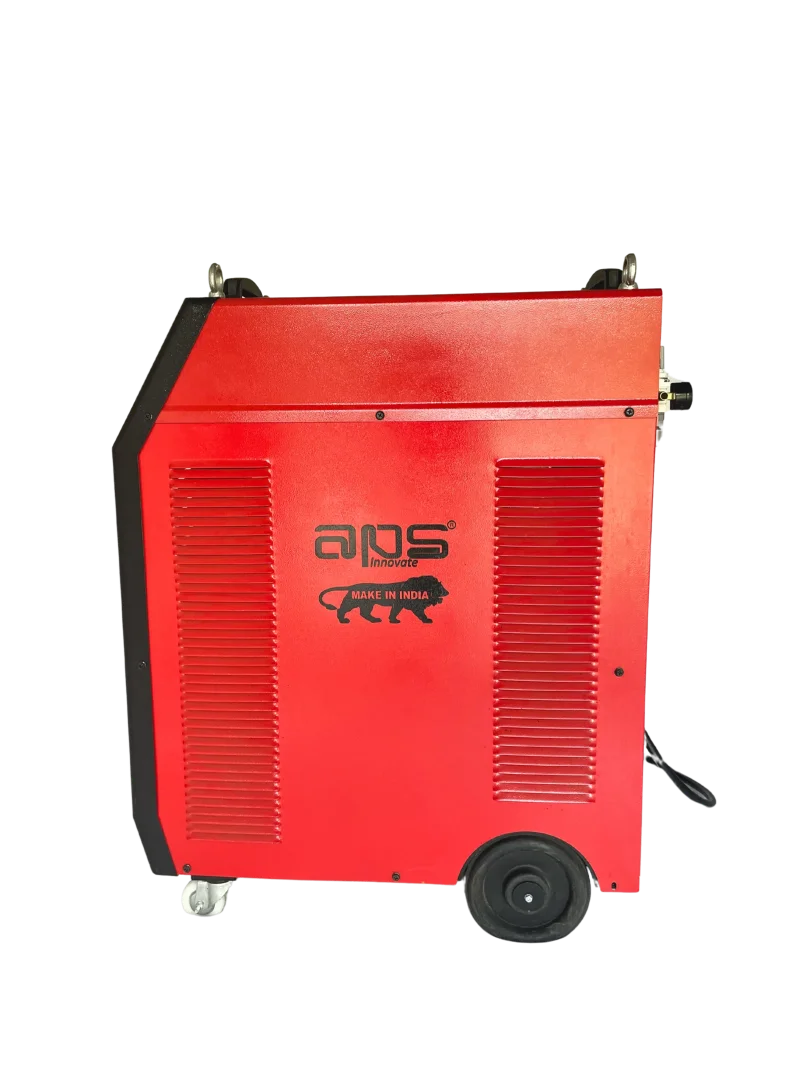

200 AMP Plasma Cutter | APS Welding presents RHINO CUT 200 Welding Machine. This 200 Amp Heavy-duty beast can perform cutting of up to 114mm thick metal. The Rhino Cut 200 is a high-performance 200 Amp plasma cutting machine designed for continuous industrial applications. If you are searching for the latest 200 Amp plasma cutting machine price in India, APS Welding offers competitive pricing with trusted technical support.
@60% Duty
@100% Duty
Weight
| Full Machine Specifications for Engineering Procurement, Site Planning, and Compliance Verification | |
|---|---|
| Input Specifications | |
| Input Voltage | 415 VAC, 3 Phase, 50/60 Hz |
| Voltage Range | 330 VAC – 500 VAC |
| Input Cable | 4 core 10 sq.mm, 4 metres |
| Switching Device | IGBT Module |
| Controller | Microprocessor Based |
| Output Specifications | |
| Output Current Range | 30A – 200A |
| Output @ 60% Duty Cycle | 200 Amps |
| Output @ 100% Duty Cycle | 155 Amps |
| Max Open Circuit Voltage (OCV) | 380 VDC |
| Process | Air Plasma Cutting |
| Cutting Performance | |
| Clean Cut Thickness | 40 mm |
| Coarse Cut Thickness | 60 mm |
| Arc Start | Pilot Arc (Non-Contact) |
| Gas Test Function | Built-in (Pre-Cut Air Check) |
| Protection & Mechanical | |
| Ingress Protection | IP21 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Dimensions (L × W × H) | 460 × 1100 × 1170 mm |
| Weight | 114 kg |
| Base / Mobility | Wheels + Handle |
| All parameters tested at APS Welding’s certified facility, Valsad. Specifications subject to change without notice — contact us for the latest data sheet. | |
| Specification | Rhino Cut 100 | Rhino Cut 160 | Rhino Cut 200 ★ | Rhino Cut 300 |
|---|---|---|---|---|
| Output Current Range | 30A – 100A | 30A – 160A | 30A – 200A | 30A – 300A |
| Output @ 60% Duty | 100A | 160A | 200A | 300A |
| Output @ 100% Duty | 77A | 124A | 155A | 231A |
| Fine Cut Thickness | 19 mm | 32 mm | 40 mm | 60 mm |
| Coarse Cut Thickness | 25 mm | 40 mm | 60 mm | 80 mm |
| Auto / Semi-Auto Cutting | 10 mm | 16 mm | 30 mm | 40 mm |
| Arc Start | HF Pilot Arc | HF Pilot Arc | HF Pilot Arc | HF Pilot Arc |
| Control Technology | Microprocessor Controlled IGBT Inverter | Microprocessor Controlled IGBT Inverter | Microprocessor Controlled IGBT Inverter | Microprocessor Controlled IGBT Inverter |
| Power Factor | 0.95 | 0.95 | 0.95 | 0.95 |
| Efficiency | 85% | 85% | 85% | 85% |
| Ingress Protection | IP21S | IP21S | IP21S | IP21S |
| Dimensions (L × W × H) | 590 × 340 × 690 mm | 590 × 340 × 690 mm | 460 × 1100 × 1170 mm | 460 × 1100 × 1170 mm |
| Weight | 45 kg | 57 kg | 114 kg | 125 kg |
| Cooling Type | Forced Air Cooling | Forced Air Cooling | Water Circulating Unit + Forced Air | Water Circulating Unit + Forced Air |
| Max Input | 18.5 KVA / 23.6 HP | 29.7 KVA / 37.8 HP | 44.5 KVA / 56.7 HP | 81.7 KVA / 104 HP |
| Best For | Industrial fabrication, maintenance, sheet cutting | Heavy fabrication, thick plate cutting | Ultra-heavy industrial cutting, continuous production applications | Extreme-duty plasma cutting, shipyards & heavy engineering |
Digital microprocessor controller with IGBT inverter delivers precise, stable plasma arc output from 30A to 200A for consistent cut quality.
Built-in pilot arc starts cutting without touching the workpiece — ideal for oxidised, painted, grated, or perforated surfaces in industrial use.
Under voltage, over voltage, phase loss, internal over-temperature, and IGBT over-current / short circuit — all protections built in standard.
Pre-cut air flow verification function — check compressed air pressure and flow before cutting to avoid torch damage and cut quality issues.
114 kg rugged full metal enclosure on heavy-duty wheels with handle — designed for production floor mobility and site durability.
Main insulation rated to 180°C Class H — designed for continuous heavy-duty industrial production cycles without thermal degradation
The Rhino Cut 200 handles a full range of conductive metals — from thin sheet trimming to heavy structural plate cutting at 60mm.
| Material | Clean Cut (Max) | Coarse Cut (Max) | Typical Application | Recommended Current |
|---|---|---|---|---|
| Mild Steel / Structural Steel | 40 mm | 60 mm | Beams, frames, gussets, construction | 100A – 200A |
| Stainless Steel | 30 mm | 45 mm | Food equipment, pressure vessels, chemical plant | 80A – 180A |
| Aluminium | 35 mm | 50 mm | Marine structures, vehicle panels, fabrication | 90A – 180A |
| Carbon Steel | 40 mm | 60 mm | Heavy engineering, machinery, earth-moving equipment | 120A – 200A |
| Specialty Metals (Copper etc.) | 20 mm | 30 mm | Electrical components, heat exchangers | 60A – 140A |
| * Cutting thickness values are indicative. Actual performance depends on air pressure, torch condition, and material grade. Contact APS Welding for application-specific guidance. | ||||
Hull plate cutting, deck penetrations, structural modifications
Beams, columns, gussets, connection plates
Machinery frames, base plates, industrial equipment
Buckets, frames, booms, wear plates
Shell cutting, nozzle openings, end plate preparation
Coach body, underframe, structural cutting
Rebar cutting, structural sections, site metalwork
Large vehicle body panels, chassis cutting, repair
Full 200 Amps at 60% duty — handles up to 60mm coarse cuts and 40mm clean cuts for demanding industrial production.
330–500V input tolerance runs reliably on DG sets and generator power — essential for Indian construction and site projects.
Non-contact arc start for oxidised, painted, and perforated materials — no touching required, consistent arc every time.
APS Welding’s certified facility in Valsad, Gujarat — quality-controlled production, Made in India, MSME registered.
Nationwide service network, genuine spare parts availability, and a dedicated technical support team across India.
Microprocessor-controlled IGBT inverter delivers high efficiency and stable arc — lower power bills versus transformer-based cutting machines.
Plasma cuts 2–5× faster than oxy-fuel on mild steel — significantly increasing production throughput and reducing job time.
Narrower kerf width and lower heat input produce cleaner cut edges with minimal dross — reducing post-cut grinding and finishing time.
Concentrated plasma arc minimises heat-affected zone (HAZ), reducing warping and distortion in cut components.
Plasma cuts stainless steel, aluminium, copper, and specialty metals that oxy-fuel cannot cut reliably.
Cleaner cuts mean less secondary machining, grinding, and weld preparation — lowering overall fabrication cost per part.
Air plasma uses compressed air as the cutting gas — no expensive oxy-fuel cylinders, regulators, or hose maintenance required.
| Accessory | Specification | Rating | Link |
|---|---|---|---|
| Air Cooled Plasma Torch | Heavy-duty air plasma cutting torch | Rated for 200A output | View Plasma Accessories → |
| Earthing Clamp | 400A rated spring-jaw clamp | 35 sq.mm cable, 3 metres | View Earthing Clamps → |
| Electrode & Nozzle Set | Standard consumable set for immediate start | Compatible with included torch | View Consumables → |
| Air Hose / Gas Connection | Compressed air input hose | Standard industrial fitting | View Gas Accessories → |
| Every Rhino Cut 200 ships with a complete set of industrial-grade accessories, ready for immediate commissioning on the production floor. | |||
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Rhino Cut 200 is used for heavy-duty plasma cutting of mild steel, stainless steel, aluminum, and other metals in industrial fabrication.
It can cut up to 40–50 mm (depending on material), with optimal performance around 25–30 mm.
Yes, it is designed for continuous heavy-duty industrial operations.
It offers high cutting precision, stable arc, low maintenance, and energy-efficient performance.
