@60% Duty
@100% Duty
Weight
Stable output from 150V to 300V AC input, ideal for fluctuating site conditions.
190A continuous output for extended welding sessions without overheating.
Rugged full-metal enclosure for harsh industrial, farm, and field environments.
30kHz full-bridge inverter with discrete IGBT for efficiency and maintainability.
| Input Specifications | |
|---|---|
| Input Voltage | 230 VAC, 1-Phase, 50/60 Hz |
| Voltage Range | 150 VAC – 300 VAC |
| Input KVA @ 250A | 9.3 KVA |
| Input Cable | 3-core 2.5 sqmm, 1.5 m |
| Switching Device | Discrete IGBT |
| Output Specifications | |
| Output Current Range | 10A – 250A |
| Output @ 60% Duty | 250 Amps |
| Output @ 100% Duty | 190 Amps |
| Open Circuit Voltage | 85 VDC (max) |
| Output Type | DC Constant Current |
| Protection & Insulation | |
| Ingress Protection | IP21 |
| Insulation Class | Class H |
| Cooling Method | Forced Air (Fan Cooled) |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 430 × 180 × 315 mm |
| Weight | 12 kg |
| Base | Rubber Foot |
| Lifting | Handle |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |

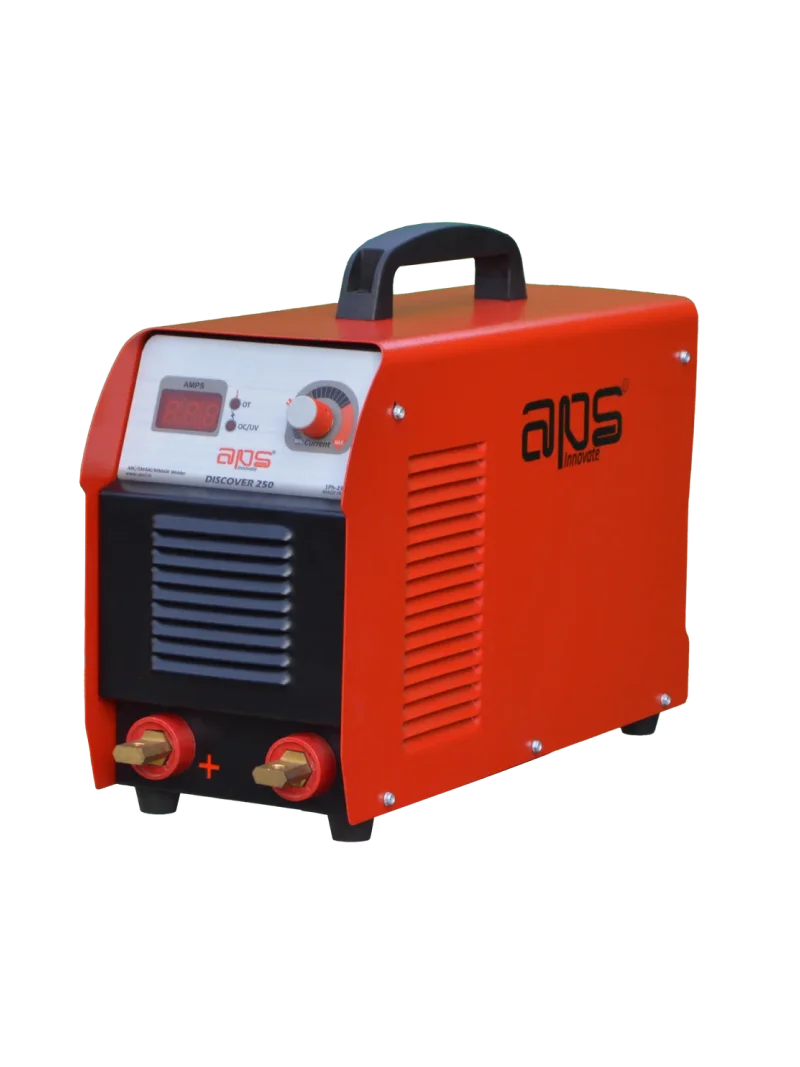

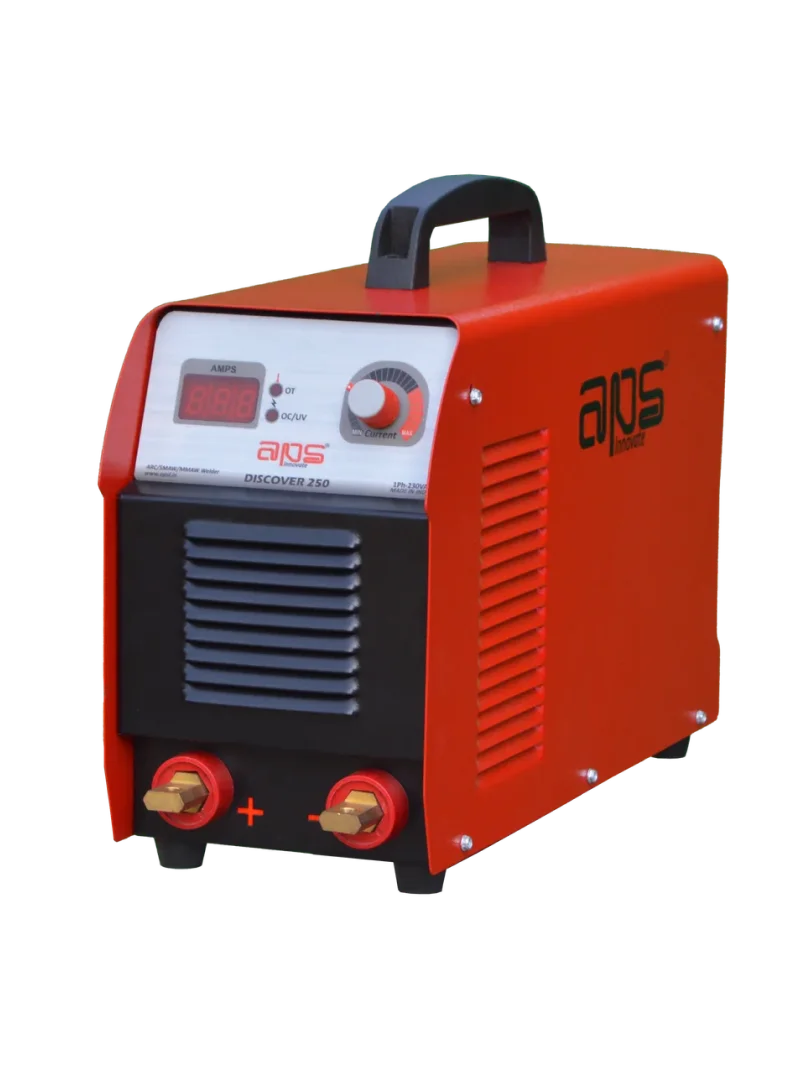

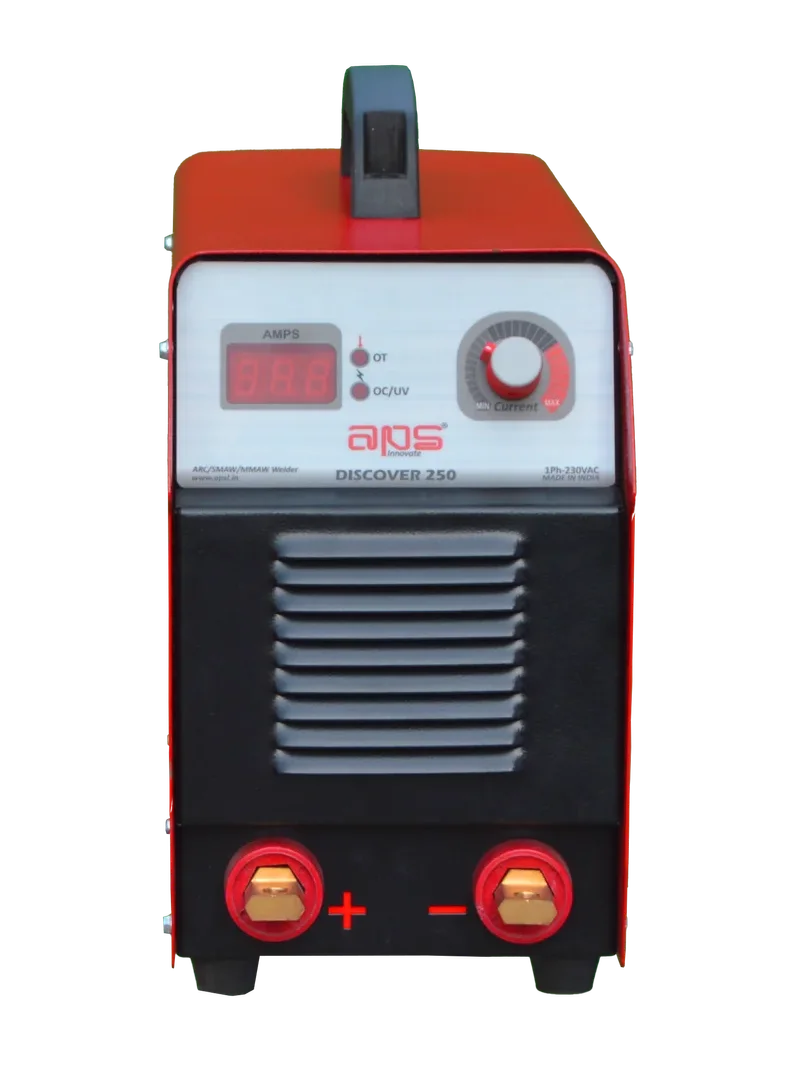

APS Welding proudly introduces the Arc Welding Machine 250 Amp, branded as the Discover 250 Arc – a rugged, high-performance welding machine engineered for professionals working on-site or in workshops. This Arc Welding Machine 250 Amp is compact yet powerful, built to run 4.0mm electrodes even on a single-phase power supply, making it ideal for fieldwork, maintenance, and general fabrication.
Despite weighing only 12kg, the Arc Welding Machine 250 Amp offers superior arc stability and excellent welding characteristics. Its wide input voltage range from 150VAC to 300VAC ensures consistent output even under fluctuating conditions, giving welders confidence in rural, industrial, or off-grid environments.
Whether you’re welding mild steel, stainless steel, or carbon steel, this machine delivers precision and durability. Its all-metal body ensures long life, while its portability makes it perfect for contractors, agricultural workers, and fabricators on the go.
The Arc Welding Machine 250 Amp combines energy efficiency, reliable arc ignition, and a strong duty cycle, making it one of the best options in its class.
| Other Details | |
|---|---|
| Weldable Materials | Mild Steel, Carbon Steel, Stainless Steel |
| Electrode Types | E6013, E7018 |
| Electrode Diameter | 1.6 mm, 2.0 mm, 2.5 mm, 3.15 mm, 4.0 mm |
| Job Thickness | 1.0 mm – 10.0 mm |
| Accessories | |||
|---|---|---|---|
| Accessory | Model | Specification | Link |
| Electrode Holder | EH20 | 200A rated, heavy-duty insulated grip for site and production use | View EH20 |
| Earthing Clamp | EC20 | 300A rated, strong spring-jaw design | View EC20 |
| Welding Cable | 25 sqmm | Heavy-duty flexible copper cable, rated for 300A operation | View Cables |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Proven manufacturer of industrial welding machines in India
Strong after-sales support & service network
Discover 250 ARC delivers up to 250 Amps, suitable for heavy-duty stick welding applications.
It supports commonly used electrodes such as E6013, E7018, and other industrial stick welding electrodes.
Yes, it is specifically designed for industrial fabrication, construction, and workshop welding with continuous operation capability.
Yes, Discover 250 ARC is manufactured by APS Welding, a trusted Indian welding machine manufacturer.
Yes, it is produced in an ISO 9001:2015 certified facility, MSME registered, and CE compliant (where applicable).
Absolutely. Its robust build and stable arc make it ideal for on-site and outdoor welding jobs.
