@60% Duty
@100% Duty
Weight
stable arc, high efficiency, reduced energy vs. transformer machines.
generator compatible for DG set and site power environments.
dust and water-splash resistant for outdoor and heavy site use.
easy site mobility with integrated handle and trolley-style wheels.
| Input Specifications | |
|---|---|
| Input Voltage | 415 VAC, 3-Phase, 50/60 Hz |
| Voltage Range | 330 VAC – 500 VAC |
| Generator Compatible | Yes |
| Input KVA @ 400A/36V | 17.8 KVA / 22.7 HP |
| Input KVA @ 310A/32V | 12.5 KVA / 15.8 HP |
| Input KVA @ 250A/30V | 9.3 KVA / 11.8 HP |
| Switching Device | IGBT Module |
| Output Specifications | |
| Output Current Range | 10A – 400A |
| Output @ 60% Duty | 400A / 36V |
| Output @ 100% Duty | 310A / 32V |
| Open Circuit Voltage | 75V – 95V DC |
| Welding Process | SMAW – DC Constant Current |
| Polarity | DC+ / DC− |
| Protection & Insulation | |
| Ingress Protection | IP23 |
| Insulation Class | Class H (180°C) |
| Cooling Method | Forced Air (Fan Cooled) |
| Thermal Protection | Auto Thermal Cutout |
| Overload Protection | Built-In |
| Mechanical Specifications | |
| Dimensions (L×W×H) | 650 × 345 × 600 mm |
| Weight | 46.5 kg |
| Base | Wheels (Trolley Style) |
| Lifting Support | Integrated Handle |
| Electrode Range | 1.6mm – 5.0mm |
| Max Job Thickness | Up to 25mm |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
| Input Power at Different Load Levels | |||
|---|---|---|---|
| Load Condition | KVA | HP | Current @ 415V |
| @ 400A / 36V (Full Load) | 17.8 KVA | 22.7 HP | 25.0 A |
| @ 310A / 32V (100% Duty) | 12.5 KVA | 15.8 HP | 17.3 A |
| @ 250A / 30V (Medium Load) | 9.3 KVA | 11.8 HP | 13.0 A |
| Electrode Compatibility & Job Thickness | ||||
|---|---|---|---|---|
| Electrode Type | Diameter Range | Material | Typical Application | Recommended Current |
| E6013 | 1.6mm – 3.15mm | Mild Steel | General fabrication, sheet metal, light structural | 40A – 130A |
| E7018 | 2.5mm – 5.0mm | Mild / Structural Steel | Heavy structural, pressure vessels, load-bearing joints | 80A – 220A |
| E308L / E316L | 2.5mm – 4.0mm | Stainless Steel | SS fabrication, food equipment, chemical industry | 70A – 180A |
| Carbon Steel | 3.15mm – 5.0mm | Carbon Steel | Heavy engineering, machinery frames, earth-moving equipment | 120A – 280A |
| Cellulosic (E6010) | 3.15mm – 5.0mm | Mild / Pipeline Steel | Pipeline root passes, vertical-down welding | 100A – 250A |

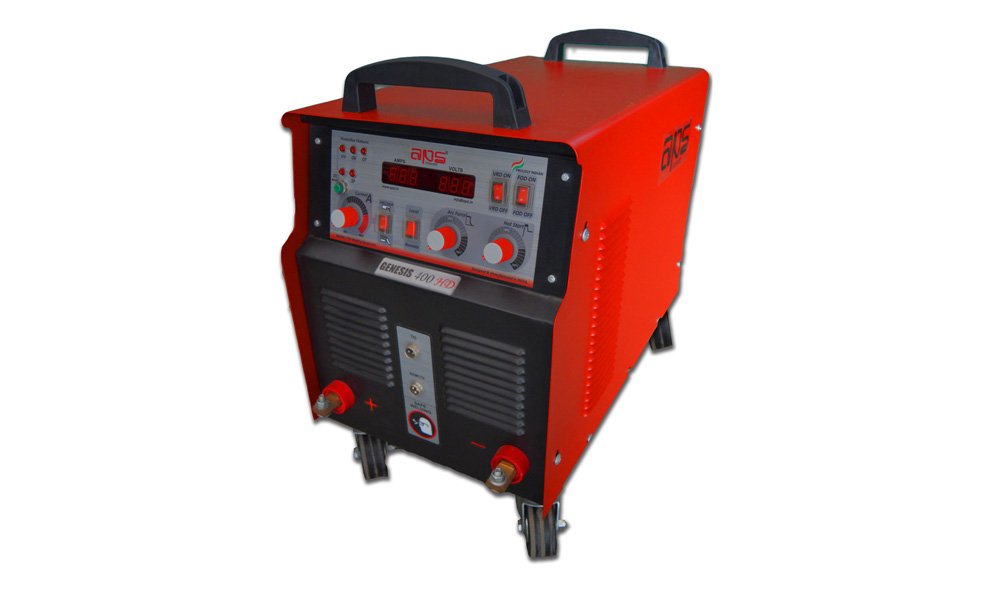

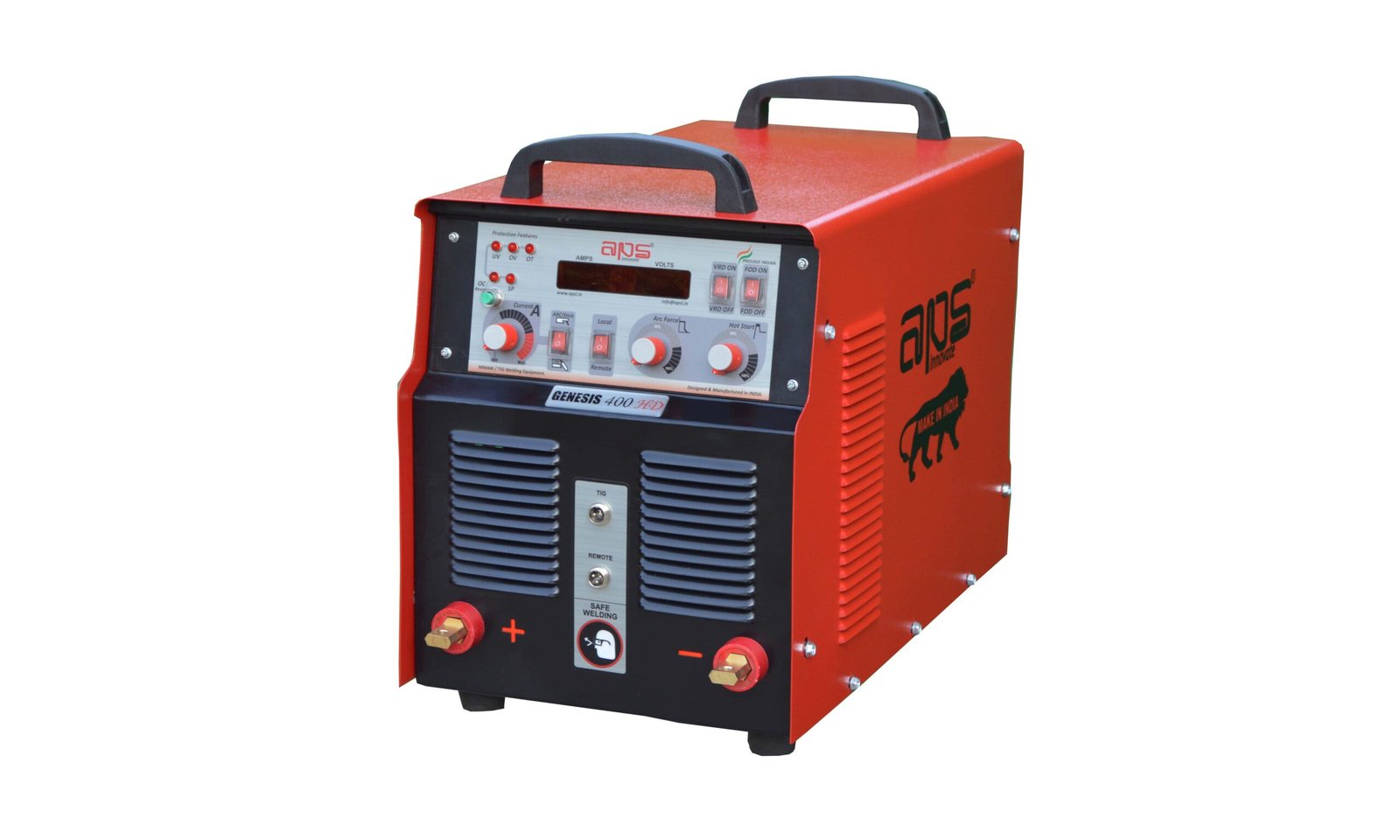

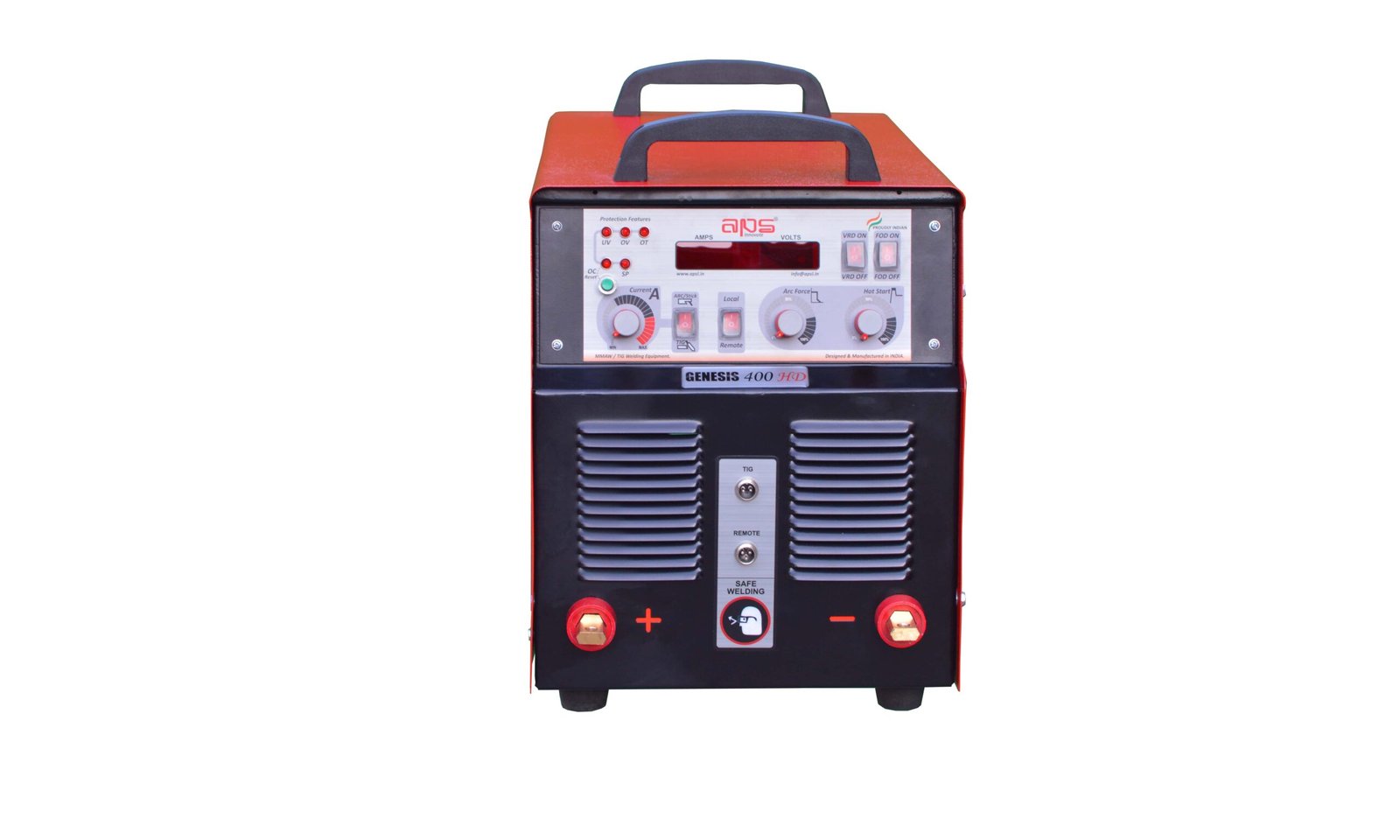

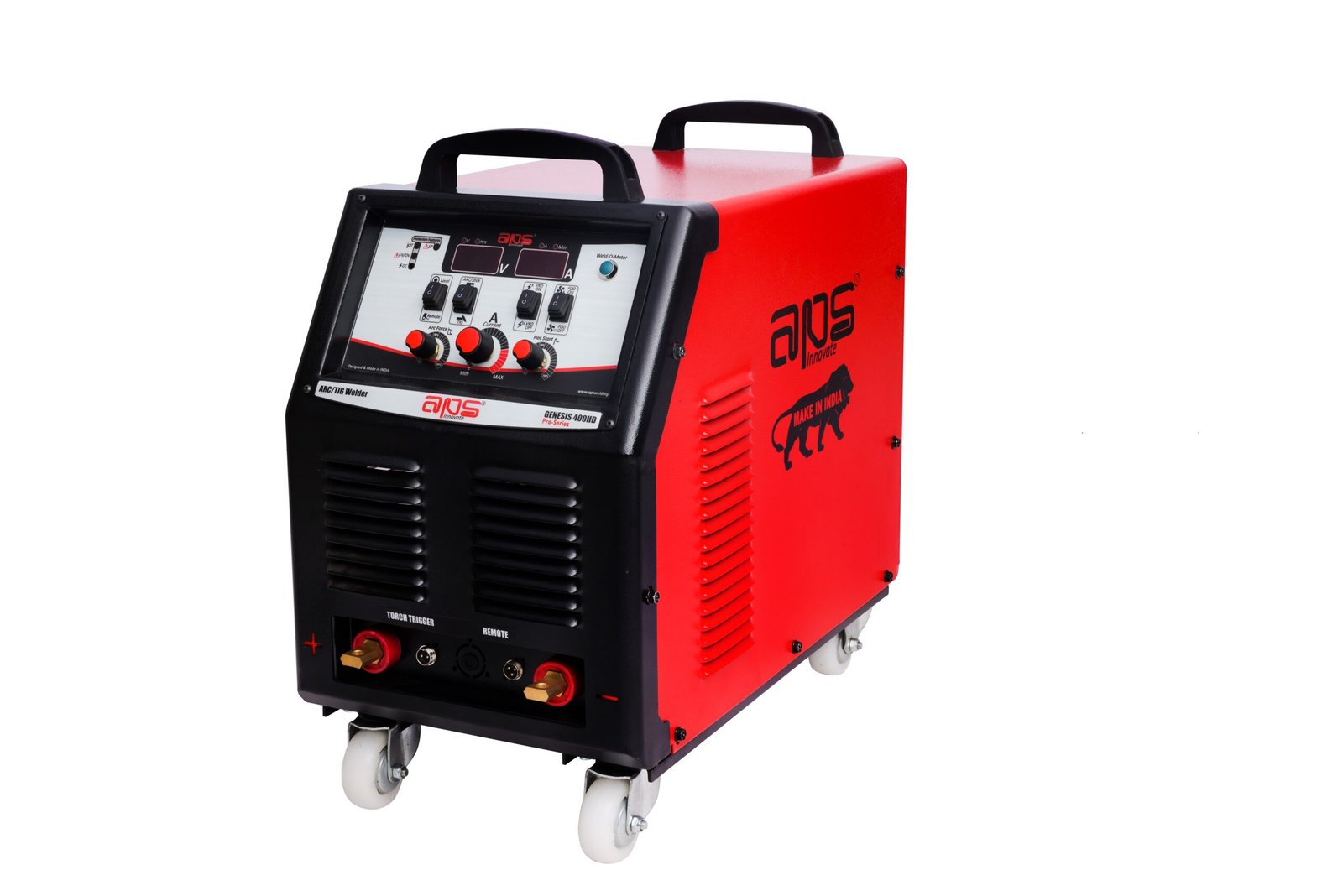

The Genesis 400HD Welding Machine by APS Welding is a powerful and reliable solution designed for a broad range of ARC welding applications. Weighing only 42kg, this lightweight machine combines portability with durability, making it the ideal choice for both on-site jobs and demanding industrial tasks. Whether you’re welding steel, stainless steel, or other metals, the Genesis 400HD guarantees superior performance, delivering clean, precise, and high-quality welds with every use. Its robust construction ensures that it can withstand tough work conditions while maintaining consistent, reliable results.
This versatile machine excels in MMAW (Manual Metal Arc Welding) and SMAW (Shielded Metal Arc Welding), providing a flexible solution for a variety of welding tasks. The Genesis 400HD is designed to meet the needs of both professional welders and enthusiasts alike, whether you’re working on construction projects, fabrication jobs, or maintenance and repair applications. Its easy-to-use controls and consistent output ensure a smooth welding experience, even in challenging environments. The Genesis 400HD is perfect for both heavy-duty industrial welding and on-the-go repairs, delivering top-notch results every time.
With the Genesis 400HD, you can expect unmatched efficiency, reliability, and productivity. This machine is a must-have for any welder looking for a machine that balances portability, power, and precision. Whether you’re in a workshop or on a construction site, the Genesis 400HD is ready to tackle your toughest welding challenges with ease.
For more information on welding techniques and applications, check out the Wikipedia article on Welding.
| Standard Accessories Included | |||
|---|---|---|---|
| Accessory | Type / Model | Specification | Link |
| Electrode Holder | EH40 | 400A rated, heavy-duty insulated grip for 5.0mm electrodes | View EH40 → |
| Ground Clamp with Cable | EC40 | 400A rated, strong spring-jaw design | View EC40 → |
| MMA Welding Leads | 35 sqmm | Heavy-duty flexible copper cable rated for 400A operation | View Cables → |
| Power Cable | 4-core input cable | Generator-compatible input lead with plug | — |
| User Manual | English | Installation, operation, and safety guide | — |
The Discover 400 Glory is a 3-phase industrial machine — it is not a general-purpose or entry-level welder. Understanding where it excels (and where it doesn’t) helps buyers make the right call.
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
The Genesis 400HD is a 400 Amp heavy-duty Stick Arc Welding (SMAW / MMAW) machine designed for continuous industrial welding, structural steel, pipeline, and heavy fabrication applications.
The Genesis 400HD delivers 310 Amps at 100% continuous duty cycle — making it suitable for uninterrupted long-run production welding without thermal interruptions.
Yes. The wide input voltage range of 330–500VAC makes it fully compatible with DG sets and generator power supplies, which is critical for Indian construction and infrastructure sites.
The Genesis 400HD welds mild steel, structural steel, stainless steel (E308L/E316L), carbon steel, and specialty metals using standard SMAW electrodes from 1.6mm to 5.0mm diameter.
Yes. Its IP23 ingress protection rating makes it resistant to dust and water splash, and the wheel-base trolley design enables easy movement across construction sites and open yards.
Yes. APS Welding machines comply with ISO, IS standards .
