APS Welding presents Multi-process CCCV Welding machine. This 1250Amp heavy duty beast can perform SAW/MIG/HARD-FACING/GOUGING/ARC Welding Welding operations with easy, ensuring high quality weld output. Powered with MODULE IGBT inverter technology, this machine is rugged, reliable and yet power saving compared to conventional type welding machines.
“CCCV power source with deep penetration, high deposition rate & stable arc control for heavy-duty industrial welding.”

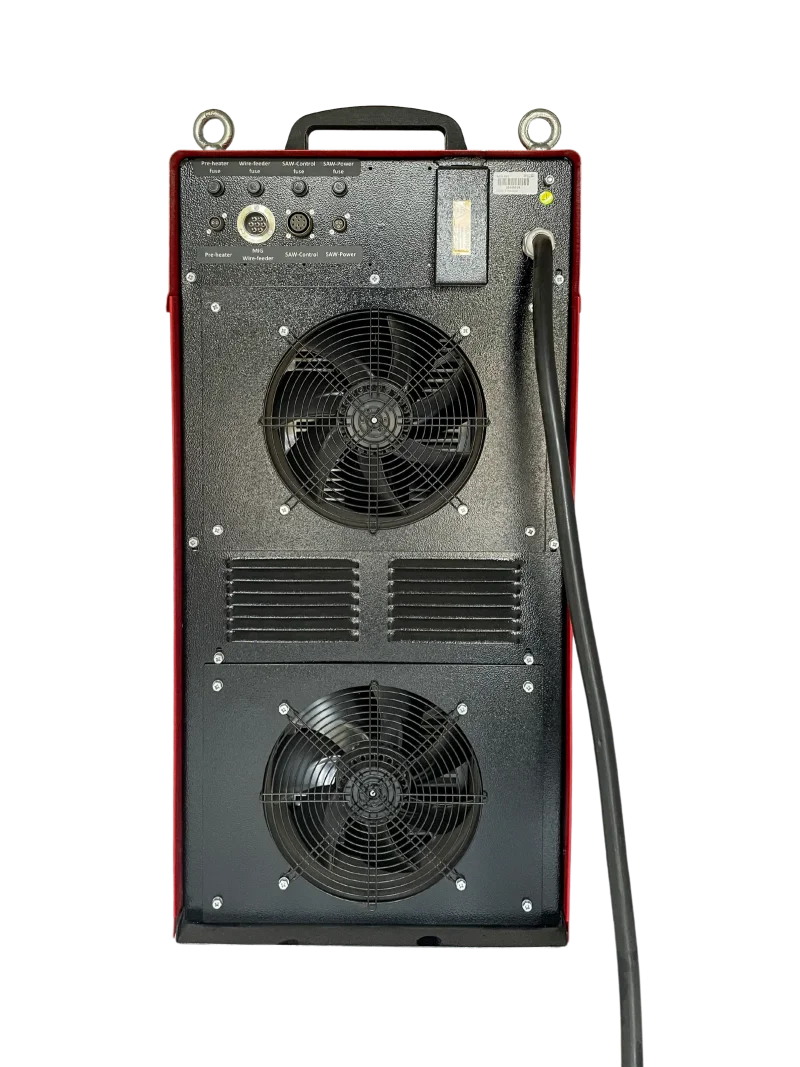

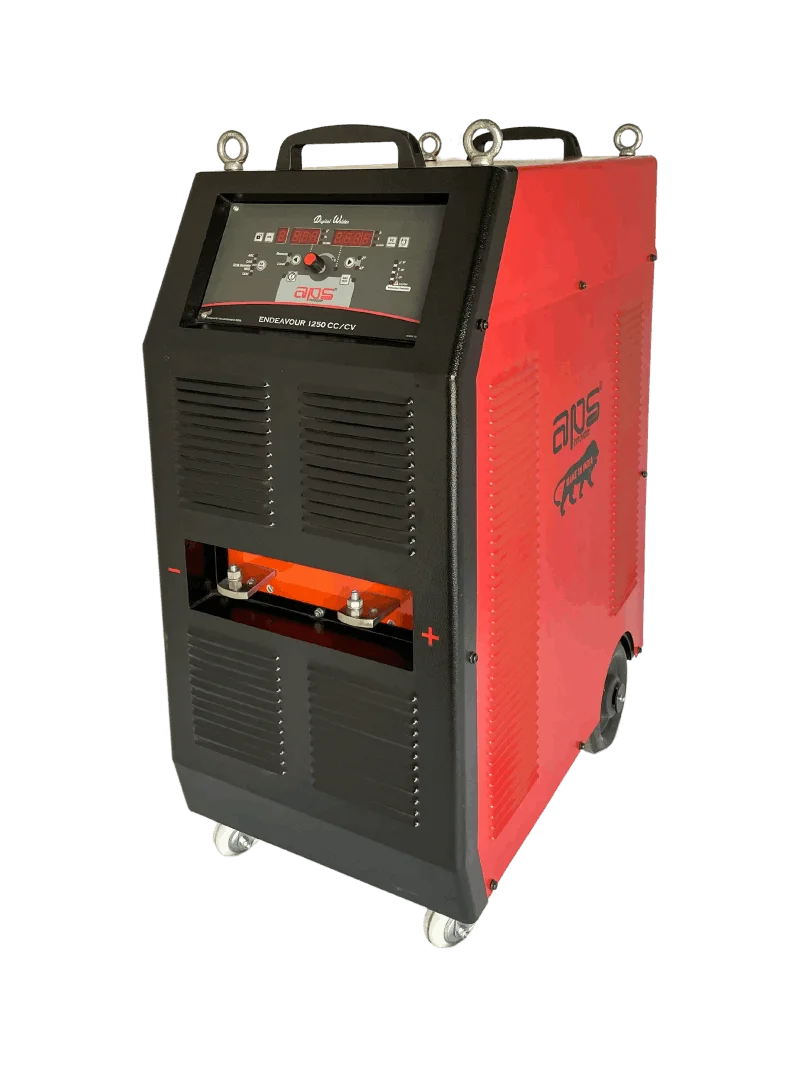

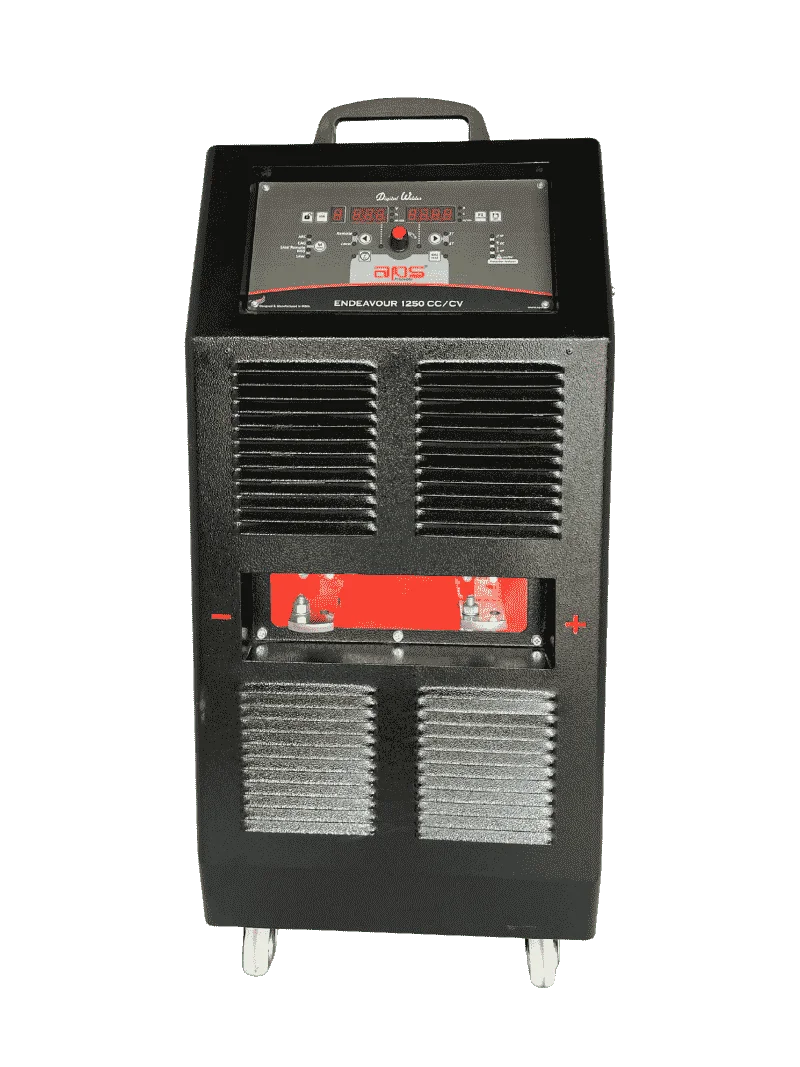

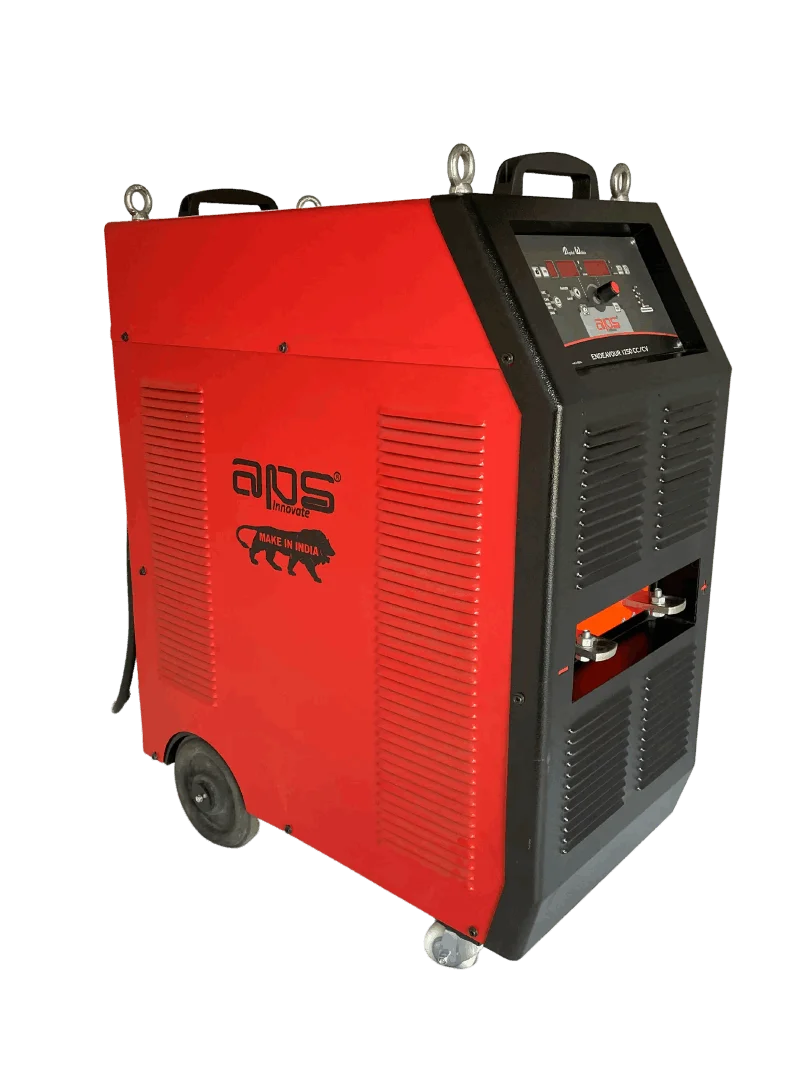

Endeavour 1250 CCCV Submerged Arc Welding Machine is a high-performance industrial welding power source engineered for maximum productivity in heavy-duty fabrication environments. With a powerful 1250A output, CCCV operating mode, and 100% duty cycle, it delivers stable arc characteristics, deep penetration, and high deposition rates for welding thick plates and long seam applications. Designed for 3-phase 415V industrial input, the Endeavour 1250 CCCV supports consistent, continuous welding and is ideal for shipbuilding, pressure vessels, pipelines, structural steel, and heavy engineering industries, where reliability, weld quality, and output consistency are critical.
TECHNOLOGY:
MODULE IGBT based 20KHz Full Bridge Inverter Welding Machine.
TOP FEATURES:
QUICK SPECS
PROCESS:
GMAW – MIG, MAG, DC Constant Voltage Power Source.
SMAW – Stick Welder, DC Constant Current Power Source.
– Inbuilt Protections: Input Supply protections from Under Voltage, Over Voltage, Phase loss protection, Internal Over Temperature Protection, IGBT Over Current / Short Circuit protection.
– Antistick Technology: Prevents the Wire electrode from sticking to the JOB at the end of weld. Also called as Burnback.
– Electronic Inductance: Adjustable Inductance, to achieve smooth as well as rough arc characteristic as per choice of the welder.
– Crater Weld Setting: Crater Voltage and Crater Current adjustable, and can be triggered from MIG Torch itself.
– ArcForce & HotStart: Arc Force and Hot Start features in ARC Welding mode, helping out of position welding and starting arc in dirty metal.
Input Specifications:
Output Specifications:
Other Specifications:
Mechanical Specifications:
SUITABLE FOR:
WELDABLE MATERIALS:
ELECTRODE TYPE & DIAMETER:
STANDARD ACCESSORIES:
APS Welding machines are manufactured in compliance with international quality and safety standards.
The Endeavour 1250 Submerged Arc Welding Machine is produced at our:
These certifications ensure high reliability, operational safety, and consistent performance
for heavy industrial welding applications.
A SAW machine is an industrial welding system where the arc is submerged under granular flux, allowing deep penetration, high deposition rates, and spatter-free welding.
SAW machines are primarily used for welding carbon steel, low-alloy steel, and structural steel in heavy fabrication industries.
Yes. SAW machines are specifically designed for continuous and high-duty-cycle industrial welding, making them suitable for 24x7 operations.
SAW offers higher productivity, deeper penetration, minimal fumes, better weld quality, and reduced operator fatigue compared to conventional ARC welding.
Yes. APS SAW machines are manufactured at an ISO 9001:2015 certified and MSME registered facility. CE compliance is available for applicable export models.
APS Welding provides technical support, service assistance, and spare parts availability
to ensure long-term machine performance.
Yes. APS Welding provides technical support, installation guidance, and after-sales service for its Submerged Arc Welding Machines.
NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
