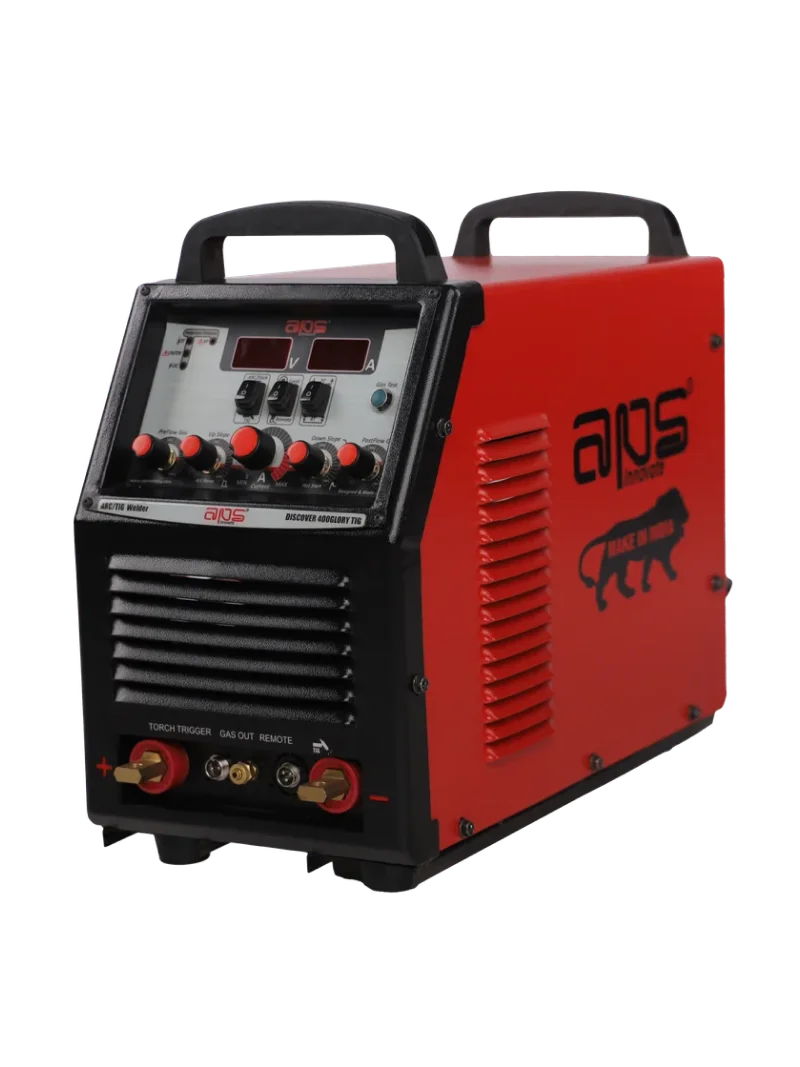

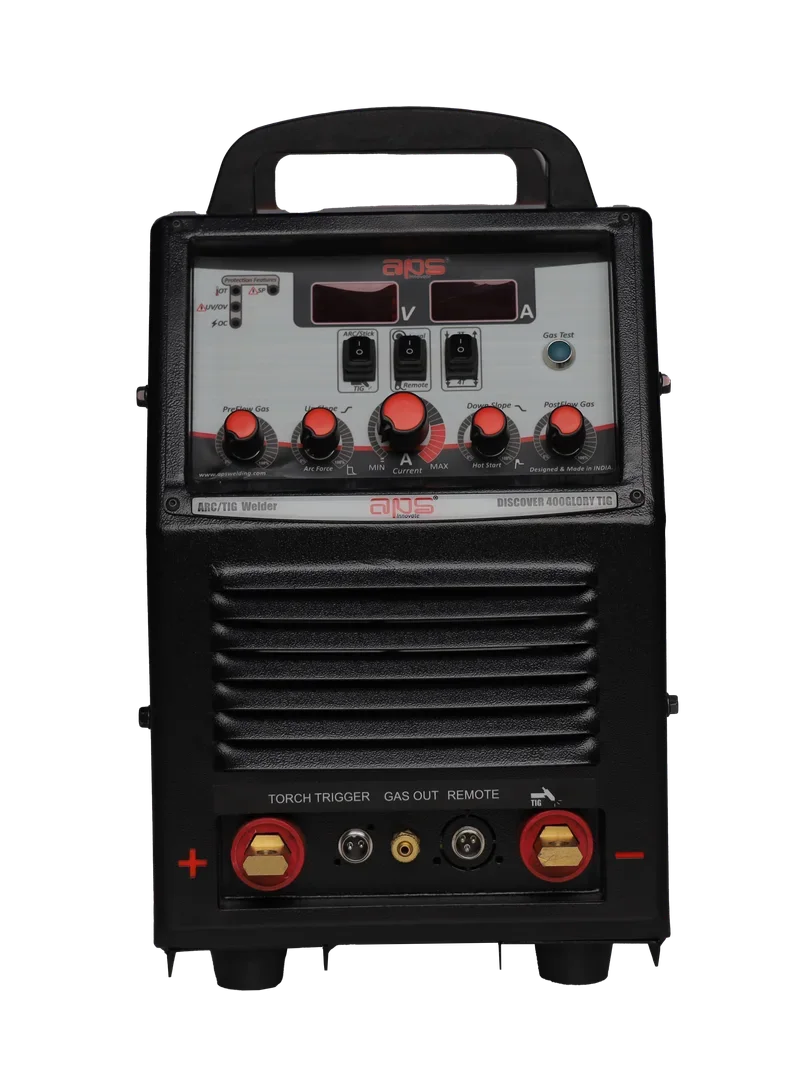

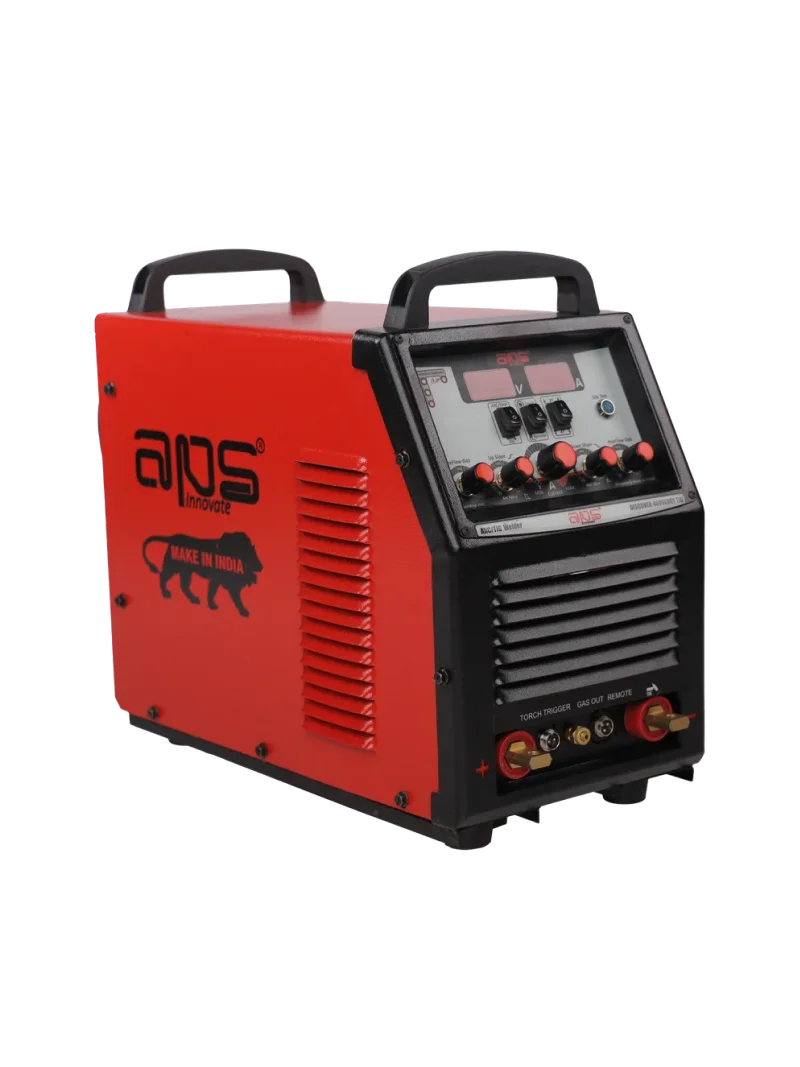

Discover 400 GloryTIG - TIG / Stick Welder (GTAW / SMAW)

APS Welding Machines presents the Portable, Powerful, and Productive Stick Electrode TIG Welding Machine. This small wonder weighs only 31 Kg and yet does perform the toughest jobs with ease.

Quick Specs:

TECHNOLOGY:

MODULE IGBT based 20KHz Full Bridge Inverter Welding Machine.

TOP FEATURES:

  • Best for site conditions, thanks to wide input voltage range from 330VAC to 500VAC.
  • Easy portability, only 31 Kg weight.
  • Rugged capability, complete Metal Body.

QUICK SPECS

  • Input Voltage: 330VAC-500VAC, 3 Phase, 50/60Hz.
  • Output Current @ 60%: 400Amp
  • Output Current @ 100%: 250Amp

PROCESS:

SMAW – Stick Welder, DC Constant Current Power Source.

GTAW – Gas Tungsten Arc welding Constant Current Power Source.

Technical Specifications:

Input Specifications:

  • Input Voltage: 330 VAC-500VAC, 3Phase, 50/60Hz
  • Primary switching device: IGBT MODULE
  • Input KVA @ 400A: 17.8KVA
  • Input Cable: 4 core 2.5 sqmm with Plug, 4.0 meters, Open leads.

Output Specifications:

  • Output Current Range: 10 Amp to 400 Amps
  • Output Current @ 60% Duty Cycle: 400 Amps
  • Output Current @ 100% Duty Cycle: 250 Amps
  • Max Open Circuit Voltage: 85 VDC

Other Specifications:

  • Class of Ingress Protection: IP21
  • Class of Insulation: Class H
  • Type of cooling: Forced Air

Mechanical Specifications:

  • Dimensions: L:550mm x W:295mm x H:440mm
  • Weight: 31 Kgs
  • Base: Rubber Foot
  • Lifting Support: Handle

Other Details:

SUITABLE FOR:

  • DIY Enthusiasts / Hobbyist
  • Farm & Agricultural Tools Repair
  • Maintenance & Repair Works
  • Customizing & Restoration Welding

WELDABLE MATERIALS:

  • Steel, Mild Steel, Carbon Steel
  • Stainless Steel

ELECTRODE TYPE & DIAMETER:

  • 6013, 7018
  • 1.6 mm, 2.0 mm, 2.5 mm, 3.15 mm, 4 mm

JOB THICKNESS:

  • 1.0 mm TO 6.0 mm

STANDARD ACCESSORIES:

  • Earthing Clamp: EC40 with welding cable 35 sqmm
  • TIG TORCH : Gas Cooled/Water Cooled Torch
  • Argon Regulator
  • Flowmeter

NOTE: Continuous development entitles us to change specifications without notice. Pictures are for reference only.
