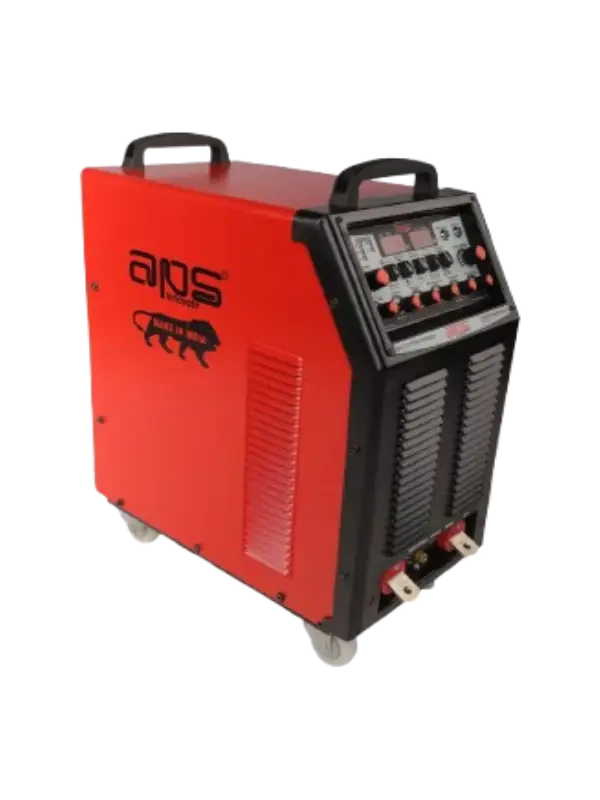

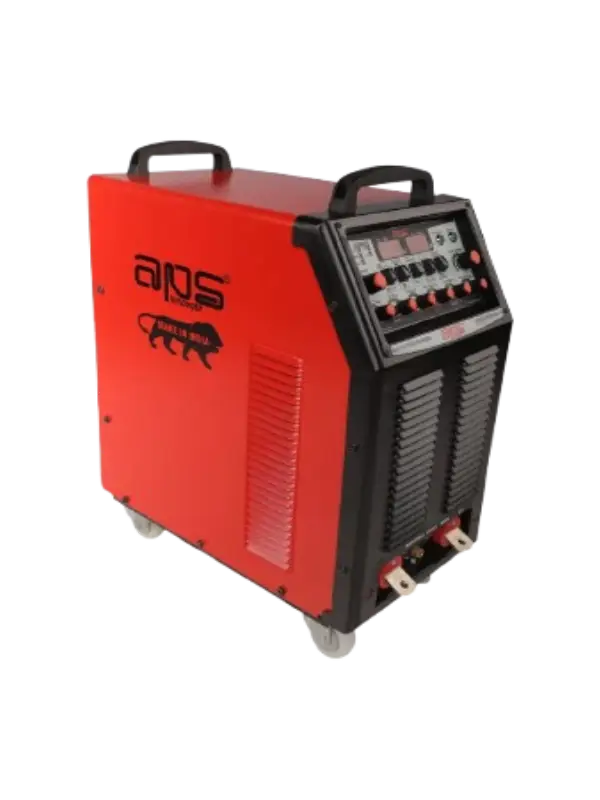

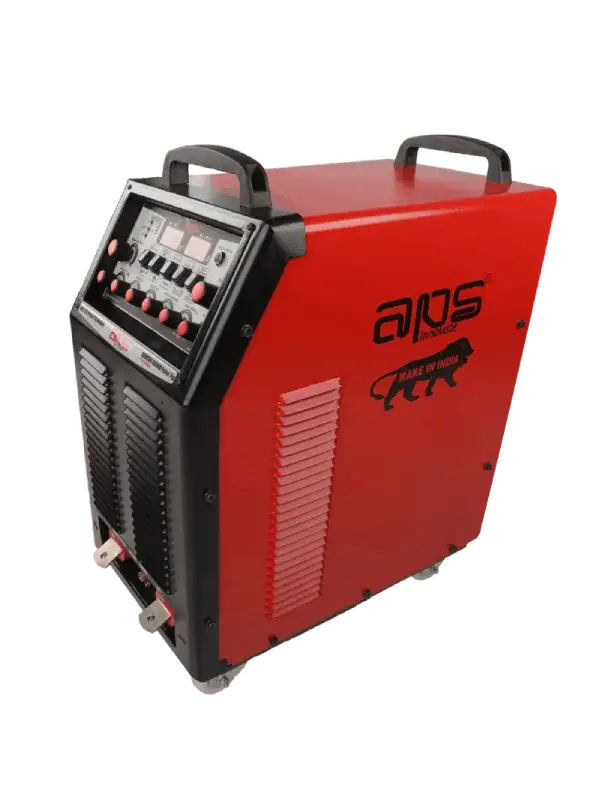

The Genesis 600HD Pulse TIG by APS Welding is a powerful, versatile, and compact welding machine designed for both TIG (GTAW) and Stick (SMAW) welding processes. This advanced machine delivers high-quality welds and is ideal for heavy-duty applications in industrial settings as well as on-site work. Despite its rugged capabilities, the machine is easy to transport, weighing only 70.5 kg, making it suitable for both stationary and mobile operations.
At the core of the Genesis 600HD Pulse TIG is IGBT-based 20KHz Full Bridge Inverter Technology, providing stable arcs, reduced spatter, and efficient energy use. The unit supports a wide input voltage range from 330VAC to 500VAC, allowing it to operate in diverse environments, including those with generator power.
With an output range of 10A to 600A, the Genesis 600HD Pulse TIG handles a variety of materials, including mild steel, stainless steel, and carbon steel. It can deliver 600A at 60% duty cycle and 465A at 100% duty cycle, making it suitable for long hours of continuous welding in demanding applications.
Built with a robust metal body and IP21 ingress protection, the machine is designed to withstand dust and moisture, ensuring reliable performance in harsh environments. Additionally, it features a forced air cooling system that prevents overheating during extended use.
Weighing 70.5 kg and equipped with wheels and a handle, the Genesis 600HD Pulse TIG is portable, allowing easy transport between different work sites. This makes it an excellent choice for construction, maintenance, and repair work, where portability and high performance are crucial.
The Genesis 600HD Pulse TIG is perfect for both TIG and Stick welding, offering the flexibility to handle a wide range of welding tasks. Its durable design, ease of portability, and powerful performance make it an invaluable tool for professionals in various industries.
The Genesis 600HD Pulse TIG is a high-performance 600 Amp pulse TIG welding machine designed for demanding industrial applications. If you are searching for the latest 600 Amp Pulse TIG welding machine price in India, APS Welding offers competitive pricing with advanced arc control technology.
@60% Duty
@100% Duty
Weight
| Input Specifications | |
|---|---|
| Input Supply | 345–500 VAC, 3-Phase, 50/60Hz |
| Generator Compatible | Yes |
| Input @ 600A / 44V | 33 KVA / 42 HP, 46A@415V |
| Input @ 465A / 39V | 23 KVA / 28.5 HP, 31A@415V |
| Input @ 380A / 35V | 16.5 KVA / 21 HP, 23A@415V |
| Switching Device | IGBT Module |
| Switching Frequency | 20 KHz |
| Topology | Full Bridge Inverter |
| Output Specifications | |
| Output Current Range | 10A – 600A |
| Duty Cycle @ 60% | 600A / 44V |
| Duty Cycle @ 100% | 465A / 38V |
| Max Open Circuit Voltage | 75V – 95V DC |
| Welding Process | Pulse TIG (GTAW) + Stick (SMAW) |
| Mechanical – Power Source | |
| Dimensions (L×W×H) | 650 × 345 × 760 mm |
| Weight | 70.5 Kg |
| Base | Wheels |
| Lifting Support | Handle |
| Body Construction | Complete Metal Body |
| Mechanical – Complete System | |
| Dimensions (L×W×H) | 1090 × 400 × 1265 mm |
| Total System Weight | 117 Kg |
| Ingress Protection | IP21 |
| Insulation Class | Class H |
| Cooling Type | Forced Air + Cooling Unit |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
| Category | Specification | Details | Application |
|---|---|---|---|
| Suitable For | Heavy Industrial Fabrication | Designed for continuous heavy-duty welding operations | Industrial fabrication plants, structural welding |
| Suitable For | Pressure Vessel Manufacturing | Supports high-quality welding for critical fabrication jobs | Pressure tanks, vessel manufacturing, boiler work |
| Suitable For | Site & Field Welding | Reliable performance for on-site industrial welding applications | Construction sites, pipeline and maintenance jobs |
| Suitable For | Maintenance & Repair Works | Ideal for repair and restoration welding tasks | Industrial maintenance, repair workshops |
| Suitable For | Customizing & Restoration | Suitable for fabrication modifications and restoration work | Metal restoration, fabrication customization |
| Suitable For | DIY Enthusiasts / Hobbyist | User-friendly operation for workshop and hobby applications | Garage work, personal fabrication projects |
| Weldable Materials | Material Type | Details | Application |
| Weldable Materials | Steel & Mild Steel | Suitable for general fabrication and repair welding | Structural fabrication, sheet metal, industrial maintenance |
| Weldable Materials | Carbon Steel | Stable arc performance with strong weld penetration | Pipe welding, fabrication work, heavy-duty welding |
| Weldable Materials | Stainless Steel | Compatible with TIG welding applications | Food industry, pharma equipment, SS fabrication |
| Weldable Materials | Alloy Steel | Reliable welding for alloy-based components | Industrial machinery, structural applications |
| Weldable Materials | Copper (TIG Mode) | Supports TIG welding on copper and similar materials | Precision fabrication and maintenance work |
| Electrode Type | Diameter Range | Material | Job Thickness |
| 6013 / 7018 | 1.6 mm, 2.0 mm, 2.5 mm | Mild Steel / Structural Steel | 1.0 – 4.0 mm |
| 6013 / 7018 | 3.15 mm, 4.0 mm, 5.0 mm | Mild Steel / Structural Steel | 4.0 – 6.0 mm+ |
Advanced DC Pulse TIG (GTAW) delivers precise heat input control, better penetration on thick metals, and a superior weld bead — critical for structural, pressure vessel, and pipe welding.
Peak 600A at 60% duty cycle and a continuous 465A at 100% duty cycle — designed to keep working when the job demands uninterrupted heavy-current welding for hours on end.
Switches seamlessly between precision Pulse TIG (GTAW) and heavy-duty Stick (SMAW) modes from the front panel — one platform handling your full range of welding requirements
345–500VAC (3-phase, 50/60Hz) wide input with generator compatibility ensures reliable performance on sites, remote locations, and areas with variable industrial power supply.
The complete Genesis 600HD Pulse TIG system — power source + cooling unit + trolley (117 kg total) — moves freely on wheels for professional workshop and site floor deployment.
IP21 ingress protection, Class H insulation, complete metal body, and forced-air cooling system ensure sustained heavy industrial performance in harsh, dusty, and humid environments.
Trusted by India’s most demanding industries where heavy-gauge welding quality, machine endurance, and arc stability define every job outcome.
600A Pulse TIG for continuous heavy structural welding — thick plate, large weldments, and high-volume fabrication shops.
Precise Pulse TIG heat control for high-integrity, code-quality welds on pressure vessels, boilers, and heat exchangers.
Root and fill pass precision on critical pipeline joints in oil, gas, water treatment, and process industry pipelines.
Sustained high-output welding for turbines, critical piping, structural maintenance, and plant fabrication.
Robust Pulse TIG and Stick capability for ship structure welding, offshore platform fabrication, and marine-grade materials.
Precision Pulse TIG for automotive frames, industrial equipment, and manufacturing line components requiring minimal distortion.
Pulsing minimises continuous heat input to the base metal — resulting in a smaller HAZ, less microstructural degradation, and better mechanical properties in the weld zone.
High peak pulse current drives better penetration into thick materials, while the background current period allows the weld pool to cool and solidify — giving precise control over bead geometry.
The alternating current pattern naturally produces a visually consistent, fine-scaled weld bead with overlapping ripples — the hallmark of high-quality TIG work.
Pulse TIG provides improved control at the leading edge of the weld pool — making it ideal for out-of-position welding, root passes, and difficult joint geometries
Lower average heat input reduces thermal expansion and contraction in the workpiece, resulting in significantly reduced warping and distortion — critical for large fabrication assemblies.
The controlled heat cycle prevents the arc from overwhelming thin sections or edges, making Pulse TIG safer and more controllable on thinner gauge stainless steel and alloy materials.
| Accessory | Specification | Details | Link |
|---|---|---|---|
| 🔧 Welding Machine | Genesis 600HD Pulse TIG Power Source | High-performance Pulse TIG welding power source designed for industrial welding applications | View Welding Machines → |
| 🔥 TIG Torch | Gas-cooled or Water-cooled | Suitable for precision TIG welding with stable arc performance and heat resistance | View TIG Torches → |
| ⚓ Earthing Clamp EC60 | With 50 sq.mm Welding Cable | Heavy-duty earthing clamp with flexible copper cable for stable current return connection | View Earthing Clamps → |
| 🫧 Argon Regulator + Flowmeter | Gas Shielding Accessories | Provides accurate gas flow control for smooth and consistent TIG welding performance | View Gas Accessories → |
| 📘 User Manual | Operation & Maintenance Guide | Includes installation, operating instructions, safety guidelines, and maintenance details | Included with Machine |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Yes, this machine is designed specifically for heavy fabrication and continuous industrial welding applications
Yes, the 600 Amp output allows welding of thick metals with excellent penetration and control.
Pulse TIG offers better heat control, reduced distortion, and improved weld quality compared to conventional TIG welding.
Yes, APS Welding offers pan‑India service support and spare availability.
