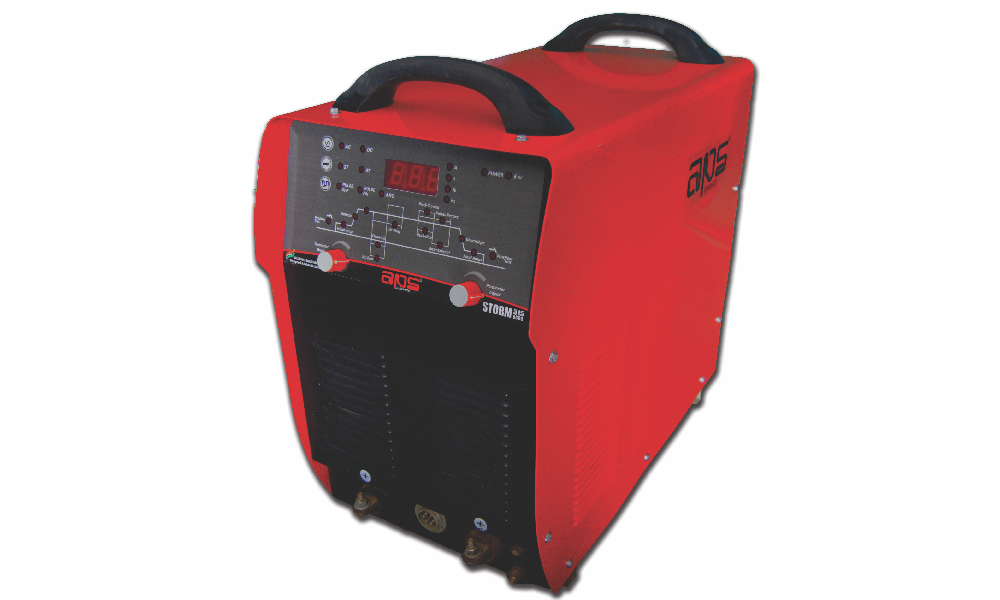

If you’re looking for a high-capacity TIG welder built for industrial-scale precision and performance, the STORM 500 AC/DC Pulse TIG is engineered to exceed expectations. Designed and manufactured in India, this versatile welding machine is equipped to handle stainless steel, copper, alloy steel, and other non-ferrous metals with power, consistency, and control.
The Storm 500 AC/DC is APS Welding’s highest-output TIG welder — rated 500 Amps at 60% duty cycle and 387 Amps at 100% continuous duty, built for heavy industrial TIG welding on stainless steel, aluminium, copper, carbon steel, and exotic alloys. Powered by a High-Frequency IGBT Soft Switching inverter, it delivers five welding processes in a single machine: MMA, DC TIG, AC TIG, DC Pulse TIG, and AC Pulse TIG.
With a wide input voltage of 330–500 VAC, pulse frequency control from 0.2–20 Hz, AC frequency up to 100 Hz, and a cleaning ratio of −40% to +40%, the Storm 500 is the definitive machine for shipbuilding, pressure vessel fabrication, power plants, and petrochemical pipelines. Manufactured at APS Welding’s ISO 9001:2015 certified facility in Valsad, Gujarat.
@60% Duty
@100% Duty
Metal Body
High-freq inverter for maximum efficiency, stable arc, minimal spatter
MMA · DC TIG · AC TIG · DC Pulse TIG · AC Pulse TIG
Pulse 0.2–20 Hz · AC Freq 20–200 Hz · Cleaning Ratio −40 to +40%
DG set / generator compatible — reliable on Indian site power
Certified Indian manufacturer — Valsad, Gujarat. 100% Made in India
| Input Specifications | |
|---|---|
| Input Voltage | 330–500 VAC, 3 Phase, 50–60 Hz |
| Max Installed Power | 24.77 KVA / 31.55 HP |
| Switching Device | IGBT Module |
| Inverter Type | High-Frequency Soft Switching |
| Output Specifications | |
| Current Range | 20A – 500A |
| Output @ 60% Duty Cycle | 500 Amps |
| Output @ 100% Duty Cycle | 387 Amps |
| Open Circuit Voltage | 75 VDC |
| Min Welding Current | 5A (precision low-amp) |
| Welding Processes | MMA, DC TIG, AC TIG, DC Pulse TIG, AC Pulse TIG |
| AC/DC TIG Control Parameters | |
| Pulse Frequency | 0.2 – 20 Hz |
| AC Frequency | Up to 100 Hz |
| Cleaning Ratio | −40% to +40% |
| Pre-Flow Gas Control | 0.1 – 15 sec |
| Post-Flow Gas Control | 0.1 – 15 sec |
| Mechanical Specifications | |
| Dimensions (W × L × H) | 380 × 777 × 830 mm |
| Weight | 47.5 kg |
| Main Transformer Insulation | Class H (180°C) |
| Output Reactor Insulation | Class B |
| Cooling Method | Forced Air — Fan Cooled |
| OCV (Arc Re-strike) | 75V |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
Aluminium hull fabrication, stainless fittings, heavy structural members
Pipelines, refineries, storage tanks — high-integrity TIG joints
Boiler tubes, turbine components, steam and pressure line fabrication
Large-scale structural steel and stainless steel production workshops
Hygienic stainless vessels, tanks, and pipelines requiring clean TIG welds
Corrosion-resistant alloy steel and SS pipe and equipment fabrication
Aluminium alloy structural components, AC Pulse TIG precision work
High-pressure vessel fabrication demanding 100% duty cycle performance
APS Welding’s highest TIG output — 500A at 60% duty and 387A at 100% continuous. Handles the heaviest industrial TIG applications without derating.
330–500V input tolerance ensures reliable operation on DG sets and generator power — critical for Indian construction and heavy industry sites.
Welding starts as low as 5A — precise enough for thin sheet and delicate alloy work without sacrificing the 500A heavy end capability.
APS Welding’s certified facility in Valsad, Gujarat — quality-controlled production with 100% in-house manufacturing and testing.
Nationwide service network, spare parts availability, and dedicated technical support for every Storm 500 unit deployed across India.
High-frequency soft switching reduces power consumption and heat generation compared to conventional transformer TIG machines — lower operating costs.
High precision welding for critical joints
Clean, strong, and defect‑free welds
Ideal for thin to thick material welding
Better control compared to conventional welding machines
Suitable for both manual & professional welding operations
| Accessory | Model / Specification | Rating | Link |
|---|---|---|---|
| TIG Welding Torch | WP-26 / WP-18 heavy-duty water-cooled | Up to 500A water-cooled | View TIG Torches → |
| Foot Pedal / Remote Control | Remote current control unit | 0–500A remote adjustment | Enquire → |
| Welding Cable | 70 sqmm heavy-duty flexible copper | Rated for 500A continuous | View Cables → |
| Earthing Clamp | EC40 heavy-duty | 400A+ rated spring-jaw | View Clamps → |
| Gas Hose & Regulator | Argon / Argon-Helium compatible | Standard TIG shielding gas connection | View Gas Accessories → |
| Hoses, Pipes & Fittings | Water cooling circuit (for water-cooled torch) | Heavy-duty industrial grade | View Hoses → |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Yes, Storm 500 is designed for high duty cycle operations, making it ideal for continuous industrial welding.
It is suitable for carbon steel, stainless steel, and alloy steel welding applications.
Yes, the advanced inverter technology ensures low power consumption with high efficiency.
Yes, APS Welding offers pan‑India service and spare parts support.
