Water Flow Rate
Temperature Accuracy
Power Supply Options
Digital temperature display with ±2°C accuracy — maintains optimal cooling between 15°C and 35°C for perfect torch performance.
5–15 L/min adjustable flow rate provides consistent water circulation through torch, cable, and connectors without interruption.
| Cooling Performance | |
|---|---|
| Water Flow Rate (Adjustable) | 5 – 15 L/min |
| Temperature Range | 8°C – 35°C (User-Settable) |
| Temperature Accuracy | ±2°C Stable |
| Cooling Capacity | 2.5 kW (Standard Duty Cycle) |
| Water Tank Capacity | 15 Liters (Internal Reservoir) |
| Electrical Specifications | |
| Input Voltage Options | 220V AC Single-Phase OR 440V AC 3-Phase |
| Power Consumption | 0.5 kW (Pump + Cooling) |
| Pump & Filtration | |
| Pump Type | Centrifugal, Magnetically Sealed, Maintenance-Free |
| Filter Type | Dual-Stage (Sediment + Carbon) |
| Filter Replacement Interval | Every 1000 Operating Hours |
| Connectivity & Compatibility | |
| Connectors | Universal Quick-Disconnect (6 mm & 8 mm) |
| Compatible Torch Types | All Standard Air-Cooled and Water-Cooled TIG Torches |
| Control Panel | LED Digital Display, On/Off Switch, Flow Adjustment |
| Alarm System | Visual & Audible Alarm for Low Flow, High Temperature & Pressure Fault |
| Mechanical & Protection | |
| Dimensions (L×W×H) | 520 × 380 × 280 mm |
| Weight | 8 kg (Unit Only), 18 kg (Unit + Reservoir) |
| Body Material | Powder-Coated Stainless Steel Frame |
| Ingress Protection | IP54 (Water Spray Resistant) |
| Operating Temperature (Ambient) | 10°C – 40°C Shop Conditions |
| Hose Length Included | 2 m Inlet + 2 m Outlet (Supplied) |
| * Specifications are subject to change without notice. Contact APS Welding for the latest product specifications. | |
| Torch Brand / Type | Connection Type | Cooling Capacity | Recommended Flow Rate |
|---|---|---|---|
| Standard Air-Cooled TIG Torches | 6 mm / 8 mm Quick Disconnect | 2 – 4 kW | 5 – 8 L/min |
| Water-Cooled TIG Torches (Light Duty) | 6 mm Quick Disconnect | 4 – 6 kW | 8 – 10 L/min |
| Water-Cooled TIG Torches (Heavy Duty) | 8 mm Quick Disconnect | 6 – 10 kW | 10 – 15 L/min |
| APS TIG Welder Power Sources | Integrated Connector Ready | Full 2.5 kW Capacity | As Per Machine Recommendation |
| Plasma Cutting Torches (With Cooling) | Universal Adapter (Supplied) | 1.5 – 2.5 kW | 5 – 7 L/min |
| * Compatibility may vary depending on torch manufacturer and connector configuration. Contact APS Welding for compatibility assistance. | |||

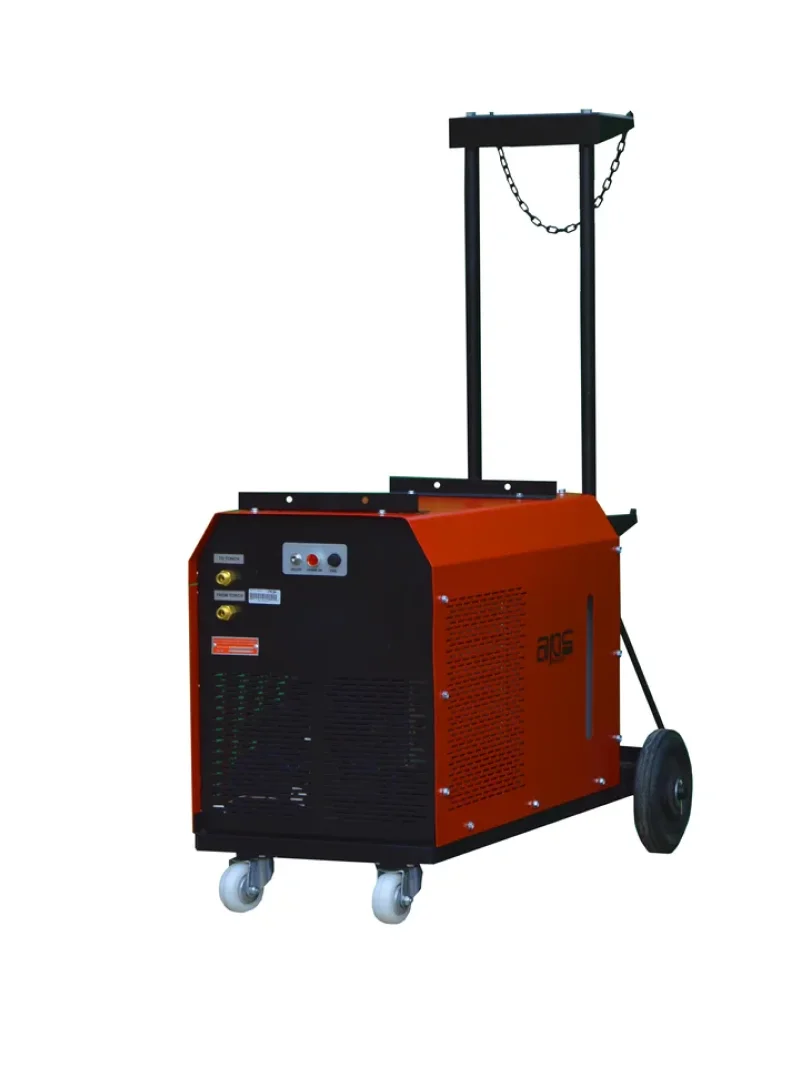

A water cooling unit is an essential accessory for TIG welding machines, especially for high-current and long-duration welding operations. It circulates coolant through the TIG torch, preventing overheating and ensuring stable arc performance.
Using a water-cooled system significantly improves weld quality, operator comfort, and equipment durability
Digital temperature display with ±2°C accuracy — maintains optimal cooling between 15°C and 35°C for perfect torch performance.
5–15 L/min adjustable flow rate provides consistent water circulation through torch, cable, and connectors without interruption.
Universal connectors compatible with all major TIG torch brands — fast setup, no modifications required for most welders.
Built-in pressure sensor alerts you to blockages or leaks before damage occurs — smart protection for expensive torches.
Dual-stage water filters remove impurities, extend cooling unit lifespan, and protect torch components from clogging.
Low-power consumption pump reduces electricity costs — ideal for continuous welding shops and high-duty-cycle environments.
Water cooling dramatically reduces torch component temperatures, preventing tungsten electrode burnout and ceramic cup degradation. Torches last 3x longer with active cooling.
Cooler torch temperatures mean stable, consistent arc ignition and steady amperage output — resulting in cleaner welds, fewer defects, and better productivity.
Lower consumable replacement frequency, reduced electrode waste, and fewer quality issues translate to significant cost savings over the year.
With active cooling, you can push continuous welding operations longer without equipment thermal stress — perfect for high-volume production runs.
Digital monitoring and automatic adjustments maintain the exact water temperature needed for optimal torch performance in every welding scenario.
Sealed pump design, automatic filtration, and smart alarm system — minimal service required. Filter changes are quick and inexpensive.
Aerospace & Aviation
Precision aluminum and titanium alloy welding
Automotive Manufacturing
High-volume frame and chassis fabrication
| Specification | Standard Model (5–10 L/min) | Heavy-Duty Model (8–15 L/min) ⭐ |
|---|---|---|
| Flow Rate Range | 5 – 10 L/min | 8 – 15 L/min |
| Cooling Capacity | 1.8 kW | 2.5 kW |
| Tank Size | 10 Liters | 15 Liters |
| Temperature Range | 10°C – 30°C | 8°C – 35°C |
| Power Consumption | 0.35 kW | 0.5 kW |
| Best For | Light-to-Medium Duty TIG Welding | Continuous, High-Volume Production |
| Price Range | Budget-Friendly | Industrial-Grade Investment |
| * Specifications are subject to change without notice. Contact APS Welding for the latest product specifications. | ||
Enhances weld consistency and arc stability
Increases torch and cable life
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
A TIG HF unit helps in starting the welding arc without touching the electrode to the job, improving weld quality and electrode life.
Yes, it is compatible with most AC & DC TIG welding machines.
Yes, HF is essential for AC TIG welding, especially for aluminum and magnesium.
Absolutely. It provides stable arc ignition and reduces contamination.
