@60% Duty
@100% Duty
Weight
Consistent output current delivers superior weld bead quality and penetration every pass
600A heavy-duty output reduces pass count on thick sections, cutting job time significantly
Inverter technology reduces power consumption by 30–40% vs comparable transformer welders
| Input Specifications | |
|---|---|
| Input Supply | 345–500 VAC, 3-Phase, 50/60Hz |
| Generator Compatible | Yes |
| Primary Device | Discrete IGBT Module |
| Switching Frequency | 30 KHz |
| Topology | Full Bridge Inverter |
| Input Load Points | |
| 600A / 44V | 33 KVA / 42 HP — 46A @ 415V |
| 465A / 39V | 23 KVA / 28.5 HP — 31A @ 415V |
| 380A / 35V | 16.5 KVA / 21 HP — 23A @ 415V |
| Output Specifications | |
| Output Current Range | 10A – 600A |
| Duty Cycle @ 60% | 600A / 44V |
| Duty Cycle @ 100% | 465A / 38V |
| Open Circuit Voltage (OCV) | 75V – 95V DC |
| Welding Process | TIG (GTAW) + Stick (SMAW) |
| Mechanical — Power Source | |
| Dimensions (L×W×H) | 650 × 345 × 760 mm |
| Weight | 69.8 Kg |
| Base | Wheels |
| Lifting Support | Handle, 4 core 2.5 sq.mm, 4m leads |
| Body Construction | Complete Metal Body |
| Mechanical — Trolley + Cooling Unit | |
| Dimensions (L×W×H) | 1090 × 400 × 1265 mm |
| Total Assembly Weight | 116 Kg |
| Protection & Cooling | |
| Ingress Protection | IP21 |
| Insulation Class | Class H |
| Cooling Type | Forced Air + Water Cooling Unit |
| Thermal Protection | Yes – Auto Cutoff |
| Overload Protection | Yes |
| * Specifications subject to change without notice. Contact APS Welding for latest data sheet. | |
| Category | Specification | Details | Application |
|---|---|---|---|
| Weldable Materials | Steel & Mild Steel | Suitable for general fabrication and repair welding | Structural fabrication, sheet metal, industrial maintenance |
| Weldable Materials | Carbon Steel | Stable arc performance with strong weld penetration | Pipe welding, fabrication work, heavy-duty welding |
| Weldable Materials | Stainless Steel | Compatible with TIG welding applications | Food industry, pharma equipment, SS fabrication |
| Weldable Materials | Alloy Steel | Reliable welding for alloy-based components | Industrial machinery, structural applications |
| Weldable Materials | Non-Ferrous Metals (TIG) | Supports TIG welding on copper and similar materials | Precision fabrication and maintenance work |
| Electrode Type | Diameter Range | Material | Job Thickness |
| 6013 / 7018 | 1.6 mm, 2.0 mm | Mild Steel / Structural Steel | 1.0 – 3.0 mm |
| 6013 / 7018 | 2.5 mm, 3.15 mm | Mild Steel / Structural Steel | 3.0 – 6.0 mm+ |

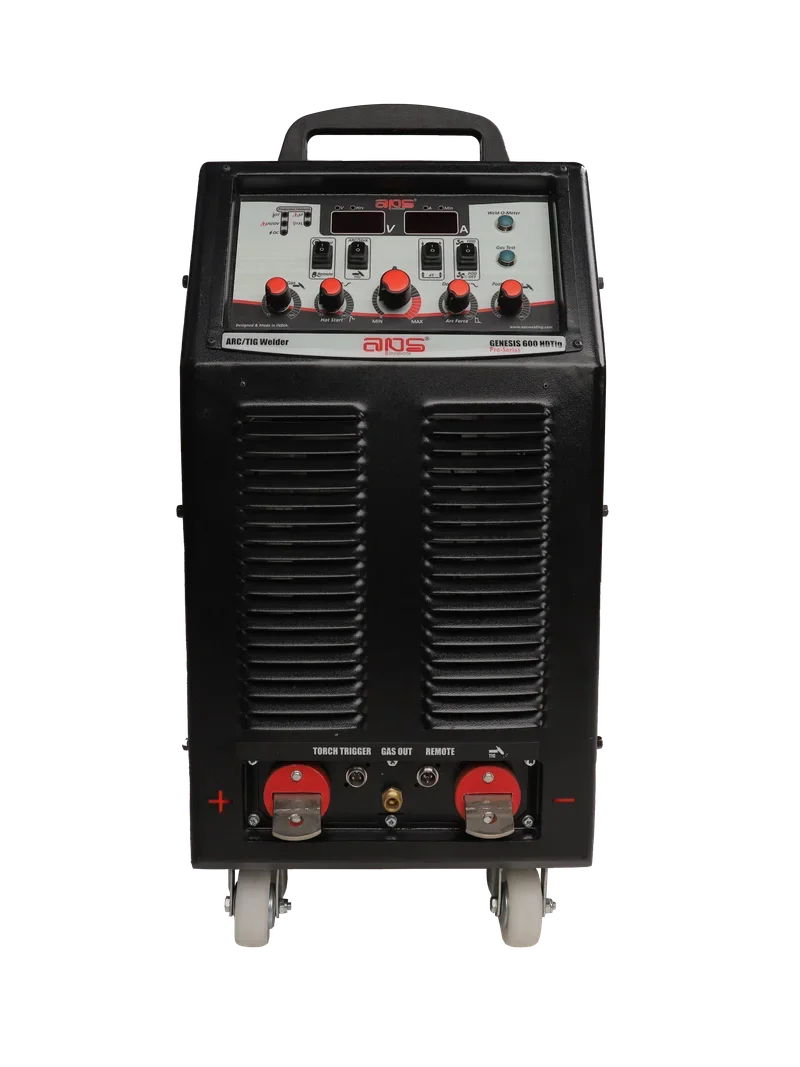

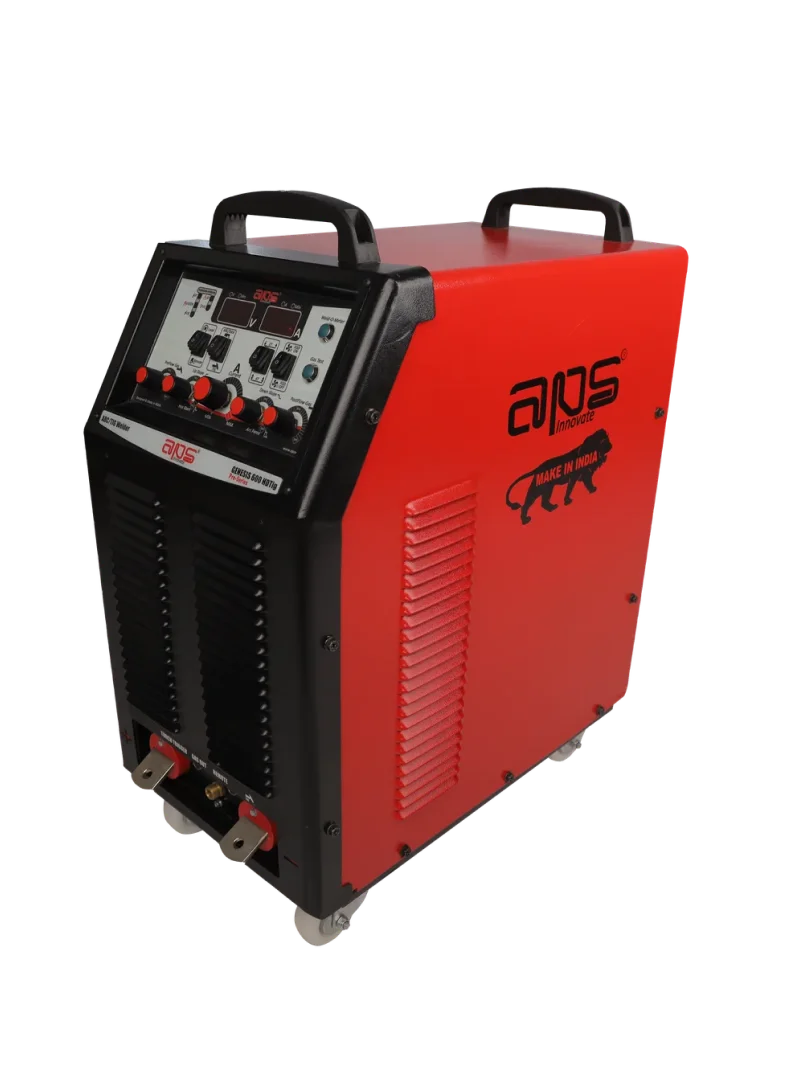

APS Welding proudly presents the Genesis 600HD TIG, a high-performance welding machine designed to tackle the toughest jobs with ease. As a dual-function unit, it provides the versatility of both TIG (GTAW) and Stick (SMAW) welding processes, making it perfect for a wide range of applications. Weighing only 69.8 kg, this compact yet powerful machine is engineered to deliver superior results in a variety of industrial, construction, and field applications.
The Genesis 600HD TIG features Discrete IGBT-based 30KHz Full Bridge Inverter Technology, ensuring smooth, stable arcs with minimal spatter and increased energy efficiency. This innovative technology not only enhances the welding experience but also contributes to the machine’s lightweight design while maintaining high output power.
This welding machine is specifically designed to meet the needs of both professional welders and DIY enthusiasts. Whether you’re working on heavy-duty industrial projects, site-specific welding tasks, or smaller repairs and restorations, the Genesis 600HD TIG is equipped to handle it all. Its ability to operate in demanding conditions, including remote sites and areas with unstable power sources, is one of its key advantages. It supports a wide input voltage range of 330VAC to 500VAC, ensuring stable operation even in challenging environments.
Trusted by India’s most demanding industries where heavy-gauge welding quality, machine endurance, and arc stability define every job outcome.
600A continuous output for multi-pass welding of thick plates and heavy structural sections without interruption.
High-integrity TIG welds meeting stringent quality codes for industrial pressure vessel and boiler manufacturing.
Powerful dual-process capability for ship structure TIG and Stick welding in marine and offshore fabrication.
High-deposition Stick welding at 600A for fast, strong joins on structural steel columns, beams, and frames.
Precision TIG for root passes on large-bore pipes in oil, gas, and process piping applications.
Long-duration welding for turbine components, refinery vessels, and critical maintenance in high-demand plants.
TIG welding of stainless and alloy steel components in high-volume automotive and industrial production lines.
Generator-compatible wide input ensures reliable 600A performance on construction sites with unstable power.
Delivers 600A at 60% duty cycle and 465A at 100% — one of the highest output capacities in its class, built for sustained heavy-duty TIG and Stick welding without thermal shutdown.
Discrete IGBT Full Bridge Inverter at 30KHz delivers smooth, stable arc with minimal spatter, precise heat control, and significantly higher energy efficiency vs transformer-based machines.
Seamlessly switches between GTAW (TIG) and SMAW (Stick/MMA) — one machine for precision TIG root passes and heavy fill/cap passes with thick electrodes up to 6mm+.
345VAC to 500VAC input range (3-phase) with full generator compatibility. Designed specifically for Indian site power conditions, including rural and offshore environments.
Despite 600A power, the Genesis 600HD TIG power source weighs only 69.8 kg with integrated wheels and handle for site mobility. Full trolley + cooling unit configuration: 116 kg.
IP21 ingress protection, Class H insulation rating, and complete metal body construction ensure long-term reliability in harsh environments — dust, vibration, and outdoor use.
Customizable solutions as per project requirements
| Accessory | Specification | Details | Link |
|---|---|---|---|
| Electrode Holder EH20 | Heavy-duty holder | Suitable for reliable electrode gripping during SMAW welding applications | View Electrode Holders → |
| Earthing Clamp EC20 | 400A rated | Strong spring-jaw earthing clamp for stable current return connection | View Earthing Clamps → |
| Welding Cable | 16 sq.mm | Flexible copper welding cable for efficient power transfer and durability | View Welding Cables → |
| TIG Torch | Gas-cooled / Water-cooled | Designed for TIG welding applications with stable arc and heat resistance | View TIG Torches → |
| Argon Regulator & Flowmeter | Single-stage with flow control | Provides accurate shielding gas regulation for smooth TIG welding performance | View Gas Accessories → |
| Certification / Compliance | Scope | Relevance |
|---|---|---|
| ISO 9001:2015 | Complete manufacturing facility — Valsad, Gujarat | Quality-controlled production, consistent output standards |
| IS Certified | Applicable Indian Standards for welding equipment | Compliance with BIS standards for Indian market |
| MSME Registered | Advanced Power Sources Limited | Registered Indian manufacturer — supports domestic procurement requirements |
| CE Compliance | Available for applicable export models | European conformity — available on request for export buyers |
Yes, the Genesis 600HD TIG welding machine is designed for heavy‑duty continuous operation in industrial environments.
It can weld carbon steel, stainless steel, alloy steel, and non‑ferrous metals.
Yes, it is widely used for pipe welding, pressure vessels, and structural fabrication.
Yes, APS Welding offers pan‑India service support and spare parts availability.
